OFP-120-RW-15
Part Number 113747-15

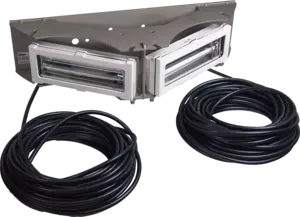

This OBSTAFLASH120 ou 180 dual color medium intensity type A and B (or C) is designed for day and night marking of obstacle such as chimneys, pylons and high rise buildings (3 or more lights are required per level depending on diameter of the obstacle)
The flashhead includes
- 2 led projectors with molded cable (X meters of cable 0.75, 5, 10 or 15 meters de be specified)
- Stainless support for the 2 projectors
Each projector must be connected (directly or through a junction box) to an external obsta power cabinet
Datasheet
