Xenon medium intensity type B compliant with ICAO medium intensity type B and compliant with FAA AC 150/5345-43G including a flashhead and a power supply (300m max)
Part Number: 113811

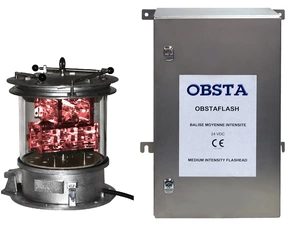

OBSTA-XE-R-240 13811
[OBSOLETE]
Flashhead
- 2 xenon flash tubes in redundancy
- Enveloppe and optic in glass
- No tools required to open the flashhead
- Aluminium body
- All electronic in the power supply (300m max)
Power supply
- 'Weather tight' stainless steel 316L power cabinet enclosure with safety interlock switch
- Long life dry capacitors
- 'Plug-in' modular construction
- Alarm relay and synchronisation card provided
- to be used with photocell 24Vdc P/N100754 and interconnecting cable P/N113805 (max lenght 300 meters) between flashhead and power supply
- in option wireless GPS interface for synchronisation P/N113746 and 24Vdc battery cabinet P/N113505
The OBSTAFLASH Xe red or white medium intensity is a flashing obstruction light dedicated to day and night marking of any obstacles.The OBSTAFLASH Xe is compliant with ICAO medium intensity type A, FAA AC 150/5345-43G flashing lights. The use of white strobe medium intensity during day time eliminates the need to paint the obstacle with aviation red and white stripes.
Certificates
Datasheet|
Average wattage
|
140W |
|
IP degree
|
IP65 for power cabinet in vertical position |
|
|
Wiring
|
Entry of cable by glands nickel plated brass and connection by terminals |
|
|
Operating temperature
|
Tu | -40/+55°C |
|
Weight
|
18 kg |
|
|
Weight
|
18kg for flashhead, 24kg for power cabinet |
|
|
Size of the light
|
494mm (height) x 394mm (over diameter) |
|
|
Wire cross section
|
from 1 to 4 mm² |
|
|
Attachment
|
6 mounting holes dia.16mm, dia.337mm circle (FAA standard) |
|
Standards compliance
|
ICAO annex 14 chapter 6, FAA AC 150/5345-43G |
|
Effective light output night mode at 0° on site
|
2000cd (red) with IR |
|
|
Color night time
|
Red |
|
|
Vertical beam spread
|
|
|
|
Horizontal beam spread
|
360° |
|
|
Flash per minute
|
20, 40 or 60 flashes per minute |
