ICAO WIND TURBINE LIGHTING

These recommendations are based on Chapter 6 of Annex 14 of ICAO (International Civil Aviation Organization latest edition) and are given for information only

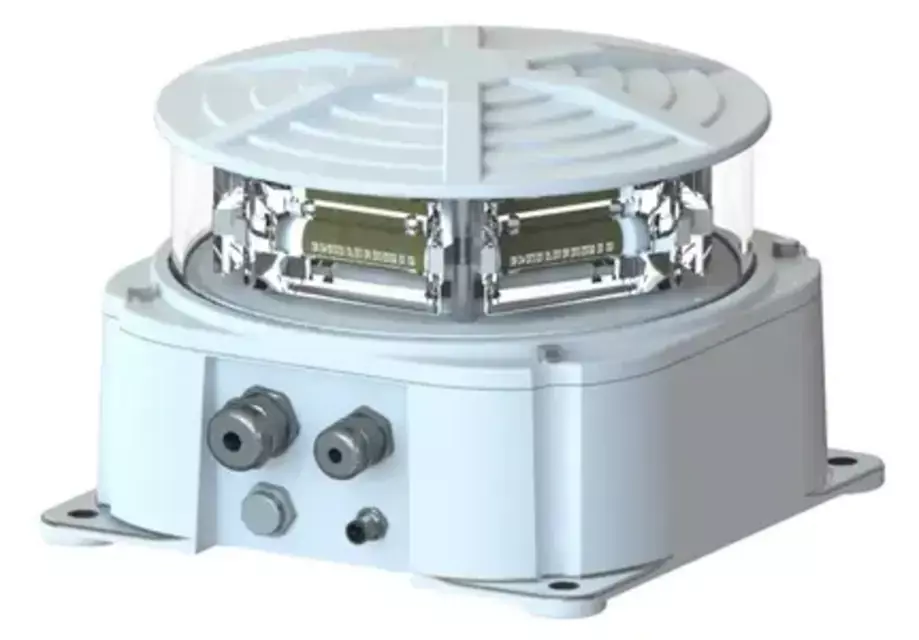

  • ICAO red medium intensity (night only operation) or dual color medium intensity (day and night operation): Autonomous flash-heads with automatic wireless synchronisation

  • In option an IoT controller (SIM card provided) and 48Vdc UPS with 12 hours back-up in option

Position DescriptionModel
1 Red medium intensity (night only)OFC-RI-048
2 Dual color medium intensityOFD-RW-048

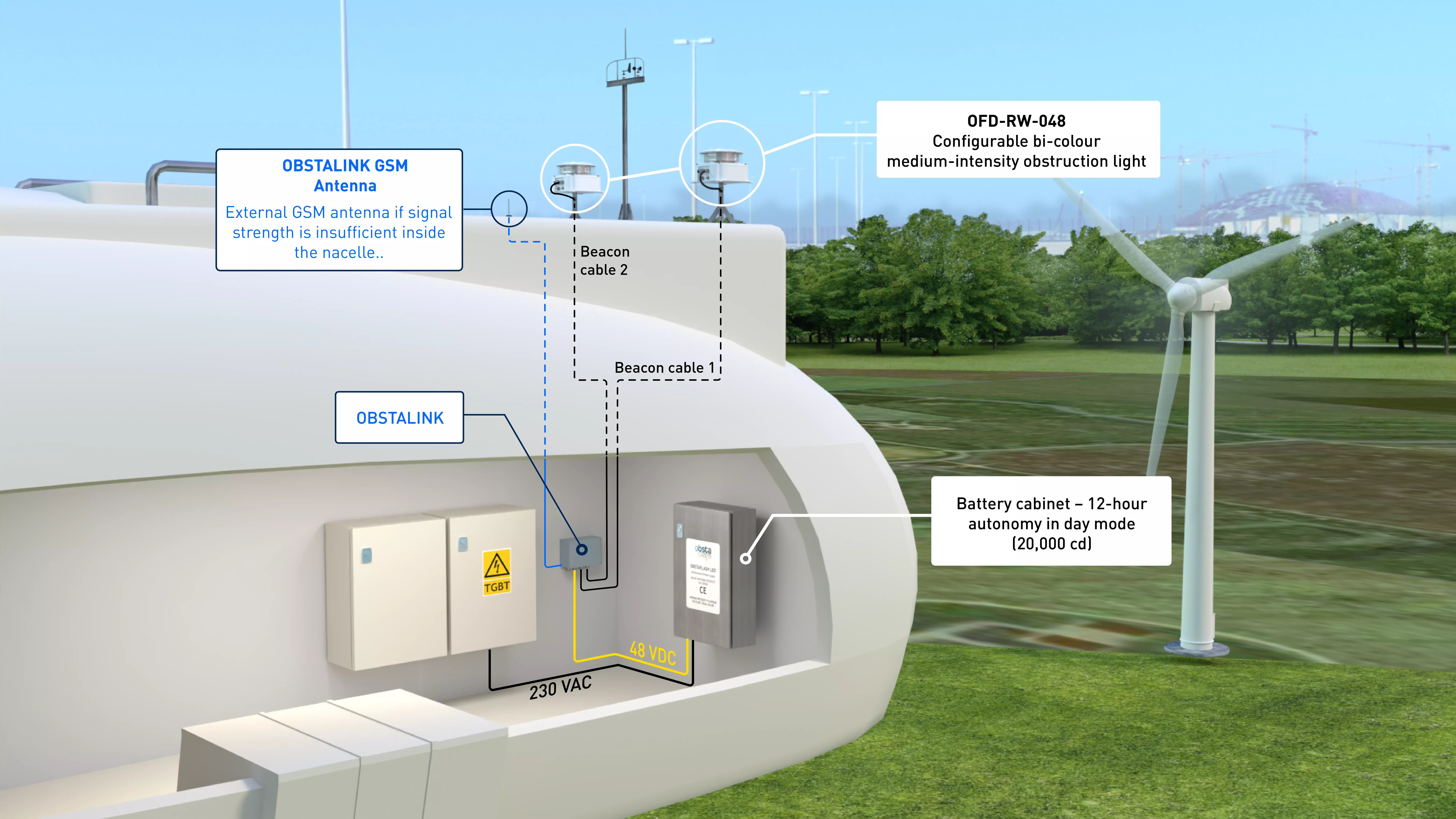

3 In option in the nacelle
3 Controller for obstruction lights IOT gateway for remote controlOBSTALINK
3 48Vdc battery cabinet 48Vdc UPS with battery back-up (110 to 240Vac power supply)48V-BAT-18AH
