48V-BAT-18Ah
Part Number 113956
48VDC UPS Battery Backup System powered through 110 to 240VAC (or 400VAC for some application). This UPS provides battery back-up in case of main power failure for our lights powered in 48Vdc The 4 batteries remain fully charged under normal AC power

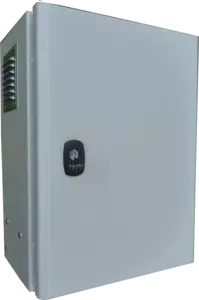

- Metal enclosure
- 110VAC to 240VAC power supply, 48VDC output
- Protection against transient overvoltage on both AC and DC side
- Protection against deep discharge batteries
- Operating temperature -20°C/+45°C
- 12 hours back-up for 1 dual color medium intensity lights or 2 red only medium intensity with 4 low intensity lights
- terminal connection for optional 48Vdc photocell for night only operation
Datasheet
Select another reference:
|
Max Power
|
300W | |
|
Main voltage
|
110VAC to 240VAC +/-10% 50/60Hz |
|
Operating temperature
|
Tu | -20/+45°C |
|

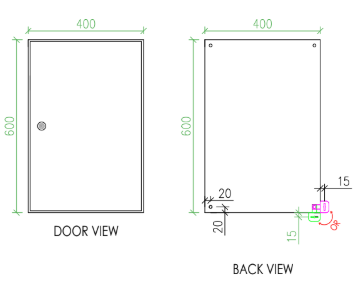

Size of the power supply
|
600mm(height)x400mm(width)x230mm(depth) | |
|
Weight
|
37.3kg |
