Red fixed low intensity type A and B
Part Number: 113908-048

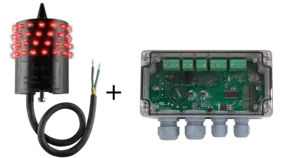

NAVILITE-48V-CMD
- Completely molded and perfectly waterproof
- Bird spike
- Total 64 leds wired 4 by 4 in active redundancy
- configuration as low intensity type B or low intensity type E
- Power supply with photocell, alarm and surge protection included
- Possibility to connect 1 to 3 additional NAVILITE-48V working simultaneously or 1 NAVILITE-48V in back-up on the same power supply
The stainless bracket NAVILITE-HOLDER for the NAVILITE and its command box should be ordered separately
The NAVILITE series are dedicated to night marking of any kind of air navigation obstacle such as wind mast, towers, cranes, building... The NAVILITE has also been designed to replace incandescent obstruction
lights or for new installation. The NAVILITE is one piece molded which integrates 4 levels of LED and
comes with wiring connectors or a molded cable.
Certificates
Datasheet|
Wattage
|
6 W |
|
|
Current drawn
|
500 mA (4 NAVILITE-48V max) |
|
|
Life time
|
~10years |
|
|
Main voltage
|
48VDC (-10%; +15%) |
|
IP degree
|
IP66 for the light and IP65 for the power supply |
|
|
Wiring
|
Terminal connection (2 power wires + ground) |
|
|
Operating temperature
|
Tu | -40/+55°C |
|
Weight
|
0.966 kg |
|
|
Weight
|
1,8 kg |
|
|
Size of the light
|
112mm (height) x 63mm (over diameter) |
|
|
Cable entry quantity for power supply
|
2 |
|
|
Wire cross section
|
from 1 to 2,5 mm² |
|
|
Attachment
|
1 screw M5 provided |
|
Standards compliance
|
ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017) |
|
Luminous intensity
|
|
|
|
Color night time
|
Red |
|
|
Vertical beam spread
|
|
|
|
Horizontal beam spread
|
360° |
