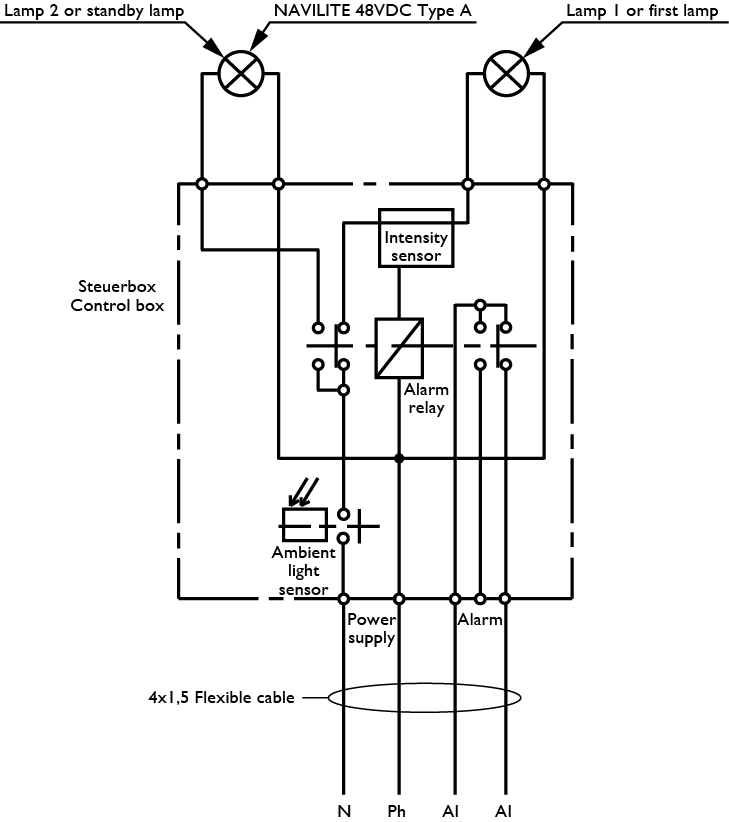

Monitoring box allowing the control and the wiring of 1 or 2 NAVILITE 48VDC beacons P/N113930 or 113935, operating at night only or continuously, plugged to work simultaneously or 2 in redundancy (a main light and a backup light working only in case the main light is not working) with remote signalization in case of failure of the light or failure of the 48VDC supply
Part Number: 113941
NAV-HI-CMD-48
- Control 1 or 2 NAVILITE HI 113930* or 113935* either
- with an active redundancy (one main lamp and one back-up lamp switched on in case of failure of the main lamp)
- or a simultaneous operation of 2 lights
- Control the day/night switching of the lights
- Allow remote monitoring in case of lamp failure or power supply failure by potential free contact
(*: instead of 1 lamp 113930 or 113935, it is possible to connect 3 lamps P/N113900, 113905 or 113965 in parallel)
Datasheet|
Main voltage
|
48VDC (-10%; +15%) |
|
IP degree
|
IP65 in vertical position |
|
|
Dimensions
|
160 x 58 mm |
|
|
Weight
|
300g |
|
|
Cable entry diameter
|
6,5-12 mm & 4-10mm |
|
|
Wire cross section
|
from 1 to 2,5 mm² |
|
|
Attachment
|
4 screws type M4 |
|
|
Position of the 4 mounting holes
|
148 x 50 mm |
