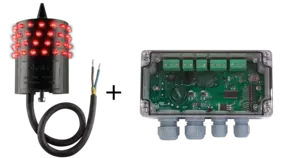

NAVILITE-120-240V
Part Number 113908
Red fixed low intensity type A and B
- Completely molded and perfectly waterproof
- Bird spike
- Total 64 leds wired 4 by 4 in active redundancy
- configuration as low intensity type B or low intensity type E
- Power supply with photocell, alarm and surge protection included
- Possibility to connect 1 to 3 additional NAVILITE-48V working simultaneously or 1 NAVILITE-48V in back-up on the same power supply
The stainless bracket NAVILITE-HOLDER for the NAVILITE and its command box should be ordered separately
Datasheet
The NAVILITE series are dedicated to night marking of any kind of air navigation obstacle such as wind mast, towers, cranes, building... The NAVILITE has also been designed to replace incandescent obstruction
lights or for new installation. The NAVILITE is one piece molded which integrates 4 levels of LED and
comes with wiring connectors or a molded cable.
Select another reference:
- 113790RI-BASE-240-RG
- 113790RR-BASE-240
- 113790RW-BASE-048-G
- 24V BATTERY CABINET 40AHSF (INPUT POWER 220VAC)
- 24V OBSTAFLASH Xe CONVERTER
- 48V BATTERY CABINET 12AHSF (INPUT POWER 220VAC)
- 48V BATTERY CABINET 7AHSF (INPUT POWER 220VAC)
- 48V-BAT-12Ah-R
- 48V-BAT-18Ah-W
- 48V-BAT-36Ah-Al
- 48V-BAT-36Ah-RW
- 48V-BAT-36Ah-W
- 48V-BAT-36Ah-W-SIT
- 48V-NAV-CTR-RI-48-IOT
- 48V-NAV-CTR-RI-SOL-IOT
- ARMOR ROD FOR WARNING SPHERE
- AUXILIARY TUBING
- AUXILIARY TUBING HOLDER
- Alimentation WDR 480W 48VDC
- BALISE HI SS125 230-AC 13621 REC
- BALISOR LAMP B23 DERVAUX
- BALISOR® B33 LAMP
- BALISOR® B49 LAMP
- BASE
- BATTERIE PBE 12V 12Ah (1162DI)
- BATTERIE S12/27 G5 12VDC 27Ah
- BRACKET-2-NAVILITE
- Batterie 12V 18Ah LEAD CRYSTAL
- C1 CAPA 4µF 77-3911 AMI
- CABLE LIAISON FEUX MI 77-4017 (13700)
- CABLE-4G1.5-UO D13.1
- CABLE-5G1.5-SO D13.3
- CABLE-7G1-SO-D12.3
- CABLE-7G1.5-SO D14.2
- CABLE-OFP-6P-RW
- CABLE-OFP-6P-RW-10S
- CABLE-OFP-6P-RW-1S
- CAPACITOR 100µF
- CAPACITOR 25µF
- CELLULE 500LUX 48V
- CHARGEUR SL 6A 48V
- CLAMP 00637
- CLAMP SYST B
- CLAUDE 5S 00656
- CLAUDE HI 00653
- CLAUDE HIG 00654
- COLLIER HI+HI-STI
- COMMAND CARD 48VDC CRESP NUIT
- COMMAND CARD 48VDC JOUR
- COMMAND-CARD-48VDC-6P-RW
- COMMAND-CARD-48VDC-6P-RW-USA-43G
- COMMAND-CARD-48VDC-6P-RW-USA-43H
- COMMAND-CARD-48VDC-6P-RW-USA-43J
- COMMAND-CARD-48VDC-8P
- CONVERTER 230VAC TO 48V-600W
- Carte RVU
- Converter DC/DC
- DISL PROTEC. CORONA
- Diode anti-retour
- FAA-OFC-ADAPTATOR
- FAULT TRANSMITTER CARD
- FAULT TRANSMITTER CARD
- GPS-24/48
- GPS-24/48-I-V2
- GPS-ANTENNA
- Guide carte (la paire)
- HEL-CAB-240
- HELITE-G-I-Controller
- HRP-150 48
- HRP-300 48
- Harnes Wire Kit 113792A
- Harness wire kit 1 block
- IMPULSE TRANSFORMER
- INSULATOR
- INSULATOR
- ISOLATING ANTI VIBRATION
- Interconnection card
- K2/4 RELAIS H.T. 77-2013 BHI
- KIT-MODEM-IOT
- LAMP END SUSPENDER
- LAMP HOLDER
- NAV-CMD-48-WITH EXTERNAL PHOTOCELL 13133
- NAV-HI-CMD-48-WITH EXTERNAL PHOTOCELL 13133
- NAV-JB-3
- NAV-JB-3-AL
- NAVILITE 12V SOLAR
- NAVILITE B 13950
- NAVILITE-120-240V
- NAVILITE-240I-KIT
- NAVILITE-24V
- NAVILITE-48V-CABLE-1
- NAVILITE-48V-CMD
- NAVILITE-FAA-48V_Spare
- NAVILITE-HI-12V
- NAVILITE-HI-230V
- NAVILITE-HI-230V-KIT
- NAVILITE-HI-24V
- NAVILITE-HI-48V
- NAVILITE-HI-48V-CABLE
- OBSTA HI STI 110-240 VAC
- OBSTA STI 48V
- OBSTA STI 48V DC
- OBSTA STIF 12V
- OBSTA VSTI 48V
- OBSTA-XE-R-24 13821
- OBSTA-XE-R-240 13811
- OBSTA-XE-RW-24 13822
- OBSTA-XE-WW-24 13820
- OF360-R-240
- OF360-RW-240
- OF360-RW-240-U
- OF360-WW-240-U
- OFC-CTR-5E-3F-5A-240-P
- OFC-CTR-5E-3F-5A-240-P-RAL7035
- OFC-CTR-6E-3F-6A-240
- OFC-HOLDER-TUBE
- OFC-HOLDER-TUBE-114
- OFC-PCBa-CMD-048
- OFC-PCBa-CMD-240
- OFH-120-RW-240
- OFH-120-WW-240
- OFH-120-WW-240-6
- OFH-120-WW-240-B
- OFH-120-WW-240-B48
- OFH-120-WW-240-B48-APR
- OFH-CTR
- OFH-CTR-G
- OFI-CAB-12P-2E-RW-240
- OFI-CAB-12P-2E-RW-BAT
- OFI-CAB-1E-RW-240
- OFI-CAB-1E-RW-240-U
- OFI-CAB-1E-RW-BAT
- OFI-CAB-1E-W-048
- OFI-CAB-1E-W-240
- OFI-CAB-1E-W-BAT
- OFI-CAB-24P-4E-RW-240
- OFI360-RW-048
- OFI360-RW-048-G
- OFI360-RW-240
- OFI360-RW-240-CAN
- OFI360-WW-048
- OFI360-WW-048-G
- OFI360-WW-240-AOL
- OFI360-WW-240I-G
- OFP-120-R
- OFP-120-RW-10L
- OFP-120-RW-10L-U
- OFP-120-RW-15
- OFP-120-RW-2-HIA
- OFP-120-RW-2B-HIA
- OFP-120-RW-2L-HIA
- OFP-120-RW-2L-HIA-L6
- OFP-120-RW-3
- OFP-120-RW-6-HIA
- OFP-120-RW-JB-U
- OFP-120-RW-JBL
- OFP-120-RW-XL
- OFP-360-FW-JBH
- OFP-360-FW-JBHx2+OFP-CAB-12P-2E-FW-BAT-G
- OFP-360-R-JB
- OFP-360-RW-JB
- OFP-360-RW-JBL
- OFP-CAB-12P-2E-R-240
- OFP-CAB-12P-4E-RW-240
- OFP-CAB-12P-6E-R-240
- OFP-CAB-12P-6E-WW-240
- OFP-CAB-16P-12E-R-240-CG32
- OFP-CAB-16P-8E-R-240
- OFP-CAB-18P-3E-R-240
- OFP-CAB-36P-12E-R-240
- OFP-CAB-6P-1E-R-048
- OFP-CAB-6P-1E-R-240
- OFP-CAB-6P-1E-R-BAT
- OFP-CAB-6P-1E-RW-240
- OFP-CAB-6P-1E-RW-240-U
- OFP-CAB-6P-1E-RW-BAT
- OFP-CAB-6P-1E-W-BAT
- OFP-CAB-6P-2E-RW-240
- OFP-CAB-6P-3E-RW-048
- OFP-CAB-6P-3E-RW-240
- OFP-CAB-6P-L-RW-048
- OFP-CAB-6P-L-RW-240
- OFP-CAB-8P-1E-R-240
- OFP-CAB-8P-1E-RW-048
- OFP-CAB-8P-1E-RW-240
- OFP-CAB-8P-1E-RW-240-HIA
- OFP-CAB-8P-4E-R-240
- OFP-CAB-8P-4E-RW-048
- OFP-CAB-8P-4E-RW-240
- OFP-CAB-8P-4E-RW-240U
- OFP-CAB-8P-L-WW-240-HIA
- OFP-CAB-9P-3E-RW-240
- OFP-FH-RW-120-6P
- OFP-JB-2P-R
- OFP-JB-3P-R
- OFP-JB-3P-RW
- OFP-JB-6P-R
- OFP-JB-6P-RW-H
- OFP-JB-6P-RW-L
- OFP-L-MALE-CONNECTOR
- PCB MASTER CARD UNICOLOR
- PCB WITH FUSE FOR OBSTAFLASH XENON
- PCB-GPS
- PCBa OFP MI CAN Extension Card
- PHOTOCELL 500/50LUX 120VAC
- PHOTOCELL 500/50LUX 48VDC
- PHOTOCELL 50LUX 120VAC
- PHOTOCELL 50LUX 230VAC
- PHOTOCELL 50LUX 24VDC
- PHOTOCELL 50LUX 48VDC
- PHOTOCELL NIGHT 77-3259 CHI
- PHOTOCELL TWILIGHT 77-3258 CHI
- PHOTOCELL-HOLDER
- POWER CARD 48VDC
- POWER CARD B 48VDC
- POWER SUPPLY 230VA 600W
- PROJECTOR-R-0.75
- PROJECTOR-R-0.75
- PROJECTOR-R-10
- PROJECTOR-RW-0.75
- PROJECTOR-RW-0.75L
- PROJECTOR-RW-10L
- PROJECTOR-RW-2B
- PROJECTOR-RW-2L
- PROJECTOR-RW-3
- PROJECTOR-RW-4
- Photocell 230V AC
- Photocell 48VDC
- Photores
- Pont de diode
- RADIO_L-854
- RED OBSTA XENON FLASHHEAD ONY
- REGULATOR VICTRON PWM LIGHT 12/24 - 5A
- REGULATOR VICTRON PWM LIGHT 12/24 - 5A
- RELAY CR-P048DC2
- Relay K1-K2
- S112 18Ah G6
- SHUNT BRAID
- SHUNT BRAID
- SIMPLIFIED HOLDER
- STAINLESS BRACKET 1 OBSTA STI/HISTI
- STAINLESS BRACKET 2 OBSTA STI/HISTI & JUNCTION BOX
- STI-ADAPTATOR
- STI-AL-48
- STI-CMD-120
- STI-CMD-240
- STI-CMD-48
- SUPPORT CABINET TUBE
- SUPPORT OFC HORIZONTAL LEG
- SUPPORT-TUBE
- SUSPENS SOUPLE 46221
- SYNCHRONISATION CARD
- Solar panel 10Wp
- Solar panel 20Wp
- Solar panel 30Wp
- TRIGGER BOARD
- TUBE A ECLAT 12S 00602 BMI 13630
- WHITE OBSTA XENON FLASHHEAD ONY
- WIND SOCK
- XE FLASHTUBE DRAWER 13840
- carte-A2
|
Luminous intensity
|
> 32cd | |
|
Color night time
|
Red fixed | |
|
Vertical beam spread
|
>10° | |
|
Horizontal beam spread
|
360° |
|
Wattage
|
6 W | |
|
Current drawn
|
70 mA | |
|
Life time
|
~10years | |
|
Main voltage
|
110VAC to 240VAC +/-10% 50/60Hz |
|
IP degree
|
IP66 for the light and IP65 for the power supply | |
|
Wiring
|
Terminal connection (2 power wires + ground) | |
|
Operating temperature
|
Tu | -40/+55°C |
|
Weight
|
0.92 kg | |
|
Size of the light
|
112mm (height) x 63mm (over diameter) | |
|
Weight
|
1,8 kg | |
|
Cable entry quantity for power supply
|
2 | |
|
Wire cross section
|
from 1 to 2,5 mm² | |
|
Attachment
|
1 screw M5 provided |
|
Standards compliance
|
ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017) |
