Red medium intensity FAA L-864 (AC 150/5345-43J) ETL certified

OFC-RI-048-R
Part Number 113790RI-048-R
OFC-RI-048-R

Flash-head with integrated power supply

  • 6 Obsta optics with cover in hard glass and aluminium base
  • Simple installation with no losing parts when opening the flash-head
  • Power supply inside the flash-head
  • NVG compatible (with IR)
  • Alarm in compliance with FAA Engineering Brief 98
  • Surge protection with indicator showing when it has failed included
  • membrane vent
  • Top sync for optional side lights L-810(L)(F) NAVILITE-IR-FAA-120-240V P/N113969IR
  • GPS and internal photocensor in option
  • Choice of the configurations (ICAO medium intensity type B (20, 30, 40, 50 ou 60 flashes per minute) or ICAO medium intensity type C or FAA L-864) through dip-switches inside the light, to be specified at time order
Contact Us
Select another reference:
113790RI-BASE-240-RG
113790RR-BASE-240
113790RW-BASE-048-G
24V BATTERY CABINET 40AHSF (INPUT POWER 220VAC)
24V OBSTAFLASH Xe CONVERTER
48V BATTERY CABINET 12AHSF (INPUT POWER 220VAC)
48V BATTERY CABINET 7AHSF (INPUT POWER 220VAC)
48V NAV CTRL 12/24/48Vdc & 110/240Vac
48V-BAT-12Ah-R
48V-BAT-18Ah-W
48V-BAT-36Ah-Al
48V-BAT-36Ah-RW
48V-BAT-36Ah-W
48V-BAT-36Ah-W-SIT
48V-NAV-CTR-RI-48-IOT
48V-NAV-CTR-RI-SOL-IOT
AC/DC control device
ARMOR-RODS-Ø8.54-24.40
AUXILIARY TUBING
AUXILIARY TUBING HOLDER
Alimentation WDR 480W 48VDC
BALISOR LAMP B23 DERVAUX
BALISOR® CLAUDE B33 LAMP
BALISOR® CLAUDE B49 LAMP
BASE
BATTERIE PBE 12V 12Ah (1162DI)
BATTERIE S12/27 G5 12VDC 27Ah
BRACKET-2-NAVILITE
Batterie 12V 18Ah LEAD CRYSTAL
C1 CAPA 4µF 77-3911 AMI
CABLE-4G1.5-UO D13.1
CABLE-5G1.5-SO D13.3
CABLE-7G1-SO-D12.3
CABLE-7G1.5-SO D14.2
CABLE-OFP-6P-RW
CABLE-OFP-6P-RW-10S
CABLE-OFP-6P-RW-1S
CAPACITOR 100µF
CAPACITOR 25µF
CELLULE 500LUX 48V
CHARGEUR SL 6A 48V
CLAMP 00637
CLAMP SYST B
CLAUDE 5S 00656
CLAUDE HI 00653
CLAUDE HIG 00654
COLLIER HI+HI-STI
COMMAND CARD 48VDC CRESP NUIT
COMMAND CARD 48VDC JOUR
COMMAND-CARD-48VDC-6P-RW
COMMAND-CARD-48VDC-6P-RW-USA-43G
COMMAND-CARD-48VDC-6P-RW-USA-43H
COMMAND-CARD-48VDC-6P-RW-USA-43J
COMMAND-CARD-48VDC-8P
COMMAND-CARD-CONVERSION-KIT
CONTROL DEVICE 113965IR
CONVERTER 230VAC TO 48V-600W
Carte RVU
Converter DC/DC
DISL PROTEC. CORONA
Diode anti-retour
FAA L-810 LIGHT BODY
FAA-OFC-ADAPTATOR
FAULT TRANSMITTER CARD
FAULT TRANSMITTER CARD
GPS-24/48
GPS-24/48-I-V2
GPS-ANTENNA
Guide carte (la paire)
HEL-CAB-240
HELITE-G-I-Controller
HRP-150 48
HRP-300 48
Harnes Wire Kit 113792A
Harness wire kit 1 block
IMPULSE TRANSFORMER
INSULATOR
INSULATOR
ISOLATING ANTI VIBRATION
Interconnection card
K2/4 RELAIS H.T. 77-2013 BHI
KIT-MODEM-IOT
LAMP END SUSPENDER
LAMP HOLDER
MSB10-230/OBSTA
NAV-CMD-48-WITH EXTERNAL PHOTOCELL 13133
NAV-HI-CMD-48-WITH EXTERNAL PHOTOCELL 13133
NAV-JB-3
NAV-JB-3-AL
NAVILITE 12V SOLAR
NAVILITE B 13950
NAVILITE-120-240V
NAVILITE-240I-KIT
NAVILITE-24V
NAVILITE-48V-CABLE-1
NAVILITE-48V-CMD
NAVILITE-FAA-48V_Spare
NAVILITE-HI-12V
NAVILITE-HI-230V
NAVILITE-HI-230V-KIT
NAVILITE-HI-24V
NAVILITE-HI-48V
NAVILITE-HI-48V-CABLE
NAVILITE-IR-F-048-KIT-TE
OBSTA HI STI 110-240 VAC
OBSTA STI 48V
OBSTA STI 48V DC
OBSTA STIF 12V
OBSTA VSTI 48V
OBSTA-XE-R-24 13821
OBSTA-XE-R-240 13811
OBSTA-XE-RW-24 13822
OBSTA-XE-WW-24 13820
OF360-R-240
OF360-RW-240
OF360-RW-240
OF360-RW-240-U
OF360-WW-240-U
OFC-CTR-048-1G
OFC-CTR-5E-3F-5A-240-P
OFC-CTR-5E-3F-5A-240-P-RAL7035
OFC-CTR-6E-3F-6A-240
OFC-CTR-SOL-1G
OFC-HOLDER-TUBE
OFC-PCBa-CMD-048
OFC-PCBa-CMD-240
OFC-RI-048-R
OFC-RI-048-TE
OFC-RI-240-R
OFC-RI-SOL-R
OFH-120-RW-240
OFH-120-WW-240
OFH-120-WW-240-6
OFH-120-WW-240-B
OFH-120-WW-240-B48
OFH-120-WW-240-B48-APR
OFH-CTR
OFH-CTR-CAN
OFH-CTR-G
OFI-CAB-12P-2E-RW-240
OFI-CAB-12P-2E-RW-BAT
OFI-CAB-1E-RW-240
OFI-CAB-1E-RW-240-U
OFI-CAB-1E-RW-BAT
OFI-CAB-1E-W-048
OFI-CAB-1E-W-240
OFI-CAB-1E-W-BAT
OFI-CAB-24P-4E-RW-240
OFI360-RW-048
OFI360-RW-048-G
OFI360-RW-240
OFI360-RW-240-CAN
OFI360-WW-048
OFI360-WW-048-G
OFI360-WW-240-AOL
OFI360-WW-240I-G
OFP-120-R
OFP-120-RW-10L
OFP-120-RW-10L-U
OFP-120-RW-15
OFP-120-RW-2-HIA
OFP-120-RW-2B-HIA
OFP-120-RW-2L-HIA
OFP-120-RW-2L-HIA-L6
OFP-120-RW-3
OFP-120-RW-6-HIA
OFP-120-RW-JB-U
OFP-120-RW-JBL
OFP-120-RW-XL
OFP-360-FW-JBH
OFP-360-FW-JBHx2+OFP-CAB-12P-2E-FW-BAT-G
OFP-360-R-JB
OFP-360-RW-JB
OFP-360-RW-JBL
OFP-CAB-12P-2E-R-240
OFP-CAB-12P-4E-RW-240
OFP-CAB-12P-6E-R-240
OFP-CAB-12P-6E-WW-240
OFP-CAB-16P-12E-R-240-CG32
OFP-CAB-16P-8E-R-240
OFP-CAB-18P-3E-R-240
OFP-CAB-36P-12E-R-240
OFP-CAB-6P-1E-R-048
OFP-CAB-6P-1E-R-240
OFP-CAB-6P-1E-R-BAT
OFP-CAB-6P-1E-RW-240
OFP-CAB-6P-1E-RW-240-U
OFP-CAB-6P-1E-RW-BAT
OFP-CAB-6P-1E-W-BAT
OFP-CAB-6P-2E-RW-240
OFP-CAB-6P-3E-RW-048
OFP-CAB-6P-3E-RW-240
OFP-CAB-6P-L-RW-048
OFP-CAB-6P-L-RW-240
OFP-CAB-8P-1E-R-240
OFP-CAB-8P-1E-RW-048
OFP-CAB-8P-1E-RW-240
OFP-CAB-8P-1E-RW-240-HIA
OFP-CAB-8P-4E-R-240
OFP-CAB-8P-4E-RW-048
OFP-CAB-8P-4E-RW-240
OFP-CAB-8P-4E-RW-240U
OFP-CAB-8P-L-WW-240-HIA
OFP-CAB-9P-3E-RW-240
OFP-FH-RW-120-6P
OFP-JB-2P-R
OFP-JB-3P-R
OFP-JB-3P-RW
OFP-JB-6P-R
OFP-JB-6P-RW-H
OFP-JB-6P-RW-L
OFP-JB-8-AL-TE
OFP-L-MALE-CONNECTOR
PCB MASTER CARD UNICOLOR
PCB WITH FUSE FOR OBSTAFLASH XENON
PCB-GPS
PCBa CMD Navilite L810(F)
PCBa OFP MI CAN Extension Card
PHOTOCELL 500/50LUX 120VAC
PHOTOCELL 500/50LUX 48VDC
PHOTOCELL 50LUX 230VAC
PHOTOCELL 50LUX 24VDC
PHOTOCELL 50LUX 48VDC
PHOTOCELL NIGHT 77-3259 CHI
PHOTOCELL-HOLDER
POWER CARD 48VDC
POWER CARD B 48VDC
POWER SUPPLY 230VA 600W
PROJECTOR-R-0.75
PROJECTOR-R-0.75
PROJECTOR-R-10
PROJECTOR-RW-0.75
PROJECTOR-RW-0.75L
PROJECTOR-RW-10L
PROJECTOR-RW-2B
PROJECTOR-RW-2L
PROJECTOR-RW-3
PROJECTOR-RW-4
Photocell 230V AC
Photocell 48VDC
Photores
Pont de diode
RED OBSTA XENON FLASHHEAD ONY
REGULATOR VICTRON PWM LIGHT 12/24 - 5A
REGULATOR VICTRON PWM LIGHT 12/24 - 5A
RELAY CR-P048DC2
Relay K1-K2
S112 18Ah G6
SHUNT BRAID
SHUNT BRAID
SIMPLIFIED HOLDER
STAINLESS BRACKET 1 OBSTA STI/HISTI
STAINLESS BRACKET 2 OBSTA STI/HISTI & JUNCTION BOX
STI-ADAPTATOR
STI-AL-48
STI-CMD-240
STI-CMD-48
SUPPORT CABINET TUBE
SUPPORT-TUBE-76
SUSPENS SOUPLE 46221
SYNCHRONISATION CARD
Solar panel 10Wp
Solar panel 20Wp
Solar panel 30Wp
TRIGGER BOARD
TUBE A ECLAT 12S 00602 BMI 13630
WHITE OBSTA XENON FLASHHEAD ONY
WIND SOCK
XE FLASHTUBE DRAWER 13840
carte-A2
IR intensity and wavelength
 > 600mW/sr @ 800-900nm
Effective light output night mode at 0° on site
 2000cd (red) with IR
Color night time
 Red
Vertical beam spread
 >3°
Horizontal beam spread
 360°
Flash per minute
 30
Main voltage
 48VDC (-10%; +15%)
Average wattage
 10W (ICAO and FAA configuration @ 30 flashes per minute)
IP degree
 IP66
Wiring
 Entry of cable by glands nickel plated brass and connection by terminals
Operating temperature
 Tu -40/+55°C
Weight
 5 kg

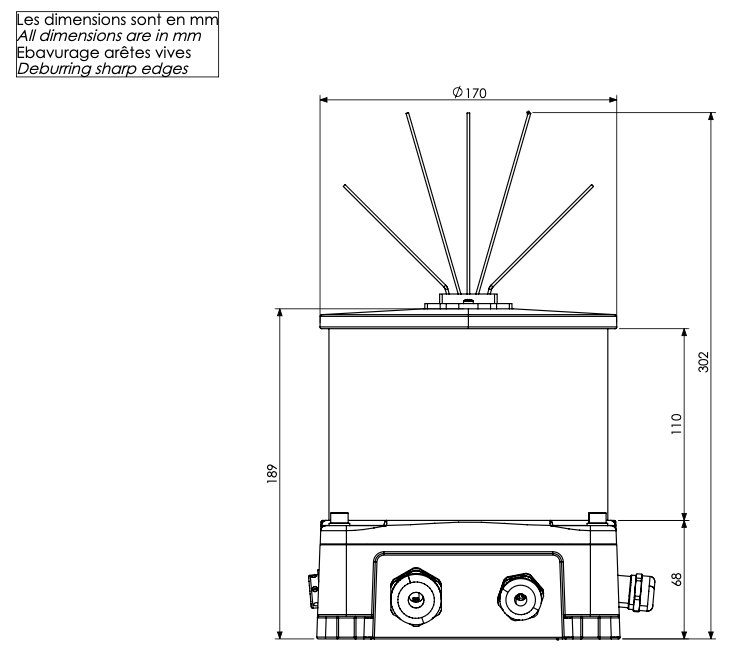

Size of the light
 220mm x 190mm x 190mm
Weight
 5kg
Cable entry diameter
 from 7 to 13 mm
Wire cross section
 up to 6mm² for power supply, up to 1,5mm² for signal
Attachment
 4 mounting holes dia.9mm, 200mm x 140mm
Standards compliance
 ICAO annex 14 chapter 6, FAA (AC 150/5345-43J), UK MOD, Transport Canada
Certification
 FAA (AC 150/5345-43J), ETL listed, DGAC(Fr)
