White medium intensity system FAA L-865 ETL certified
Part Number: 113757U
OFI120-WW-48/240-U
[OBSOLETE]
3 flashheads OFP-120-RW-10L-U with :
- 2 led projectors IP66
- Aluminium and glass enveloppe
- Vertical stainless support

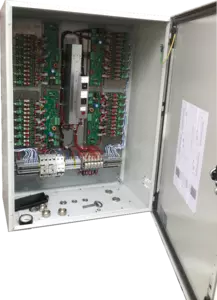

Power supply :
- Stainless enclosure with interlock switch and cable entry at the bottom
- Surge protection included
- Alarm relay in case of projector failure or power supply failure
- Test button with auto/day/night modes
- 8 led indicators for easy diagnostic
Dual color medium intensity FAA L-865/L-864 including 3 OBSTAFLASH120 flashheads dedicated to stack, chimney and all obstacle with a cylinder base.
Comply with ICAO medium intensity dual color type A and B. As per FAA white flashing lights L-865 used for daytime and twilight marking are recommended for obstacle exceeding 61 meters high
Datasheet|
Main voltage
|
110VAC to 240VAC +/-10% 50/60Hz |
|
|
Average wattage
|
55W (day time), 8W (night mode) |
|
Wiring
|
For each projector, 10 meters of molded cable For power supply, 1 plug per projector + entry of power & signal cable by glands nickel plated brass and connection by terminals |
|
|
Operating temperature
|
Tu | -40/+55°C |
|
Weight
|
3,5kg per flash-head |
|
|
Size of the light
|
120mm (height) x 480mm (width) |
|
|
Size of the power supply
|
400mm (height) x 300mm (width) x 200mm (dept) |
|
Standards compliance
|
ICAO annex 14 chapter 6, FAA (AC 150/5345-43J), UK MOD, Transport Canada |
|
|
Certification
|
FAA (AC 150/5345-43J), ETL certified, DGAC(Fr) |
|
Effective light output day time at 0° on site
|
20 000cd (white) |
|
|
Effective light output twilight mode at 0° on site
|
20 000cd (white) |
|
|
Effective light output night mode at 0° on site
|
2000cd (white) |
|
|
Color day/twilight time
|
white |
|
|
Color night time
|
White |
|
|
Vertical beam spread
|
|
|
|
Horizontal beam spread
|
360° with minimum 3 flashheads fixed at 120° around the obstacle |
|
|
Intensity @ -10% to the ground
|
3% of max |
|
|
Flash per minute
|
40 |
