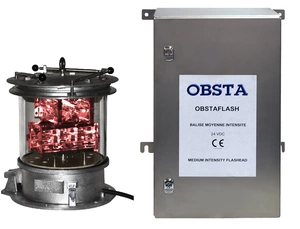

OBSTA-XE-R-24 13821
Part Number 113821
Xenon medium intensity type B compliant with ICAO medium intensity type B and compliant with FAA AC 150/5345-43G including a flashhead and a power supply (300m max)
Flashhead
- 2 xenon flash tubes in redundancy
- Enveloppe and optic in glass
- No tools required to open the flashhead
- Aluminium body
- All electronic in the power supply (300m max)
Power supply
- 'Weather tight' stainless steel 316L power cabinet enclosure with safety interlock switch
- Long life dry capacitors
- 'Plug-in' modular construction
- Alarm relay and synchronisation card provided
- to be used with photocell 24Vdc P/N100754 and interconnecting cable P/N113805 (max lenght 300 meters) between flashhead and power supply
- in option wireless GPS interface for synchronisation P/N113746 and 24Vdc battery cabinet P/N113505
Datasheet
The OBSTAFLASH Xe red or white medium intensity is a flashing obstruction light dedicated to day and night marking of any obstacles.The OBSTAFLASH Xe is compliant with ICAO medium intensity type A, FAA AC 150/5345-43G flashing lights. The use of white strobe medium intensity during day time eliminates the need to paint the obstacle with aviation red and white stripes.
