Typical obstruction lighting for telecom/broadcast towers, lattice and steel towers

These recommendations are based on Chapter 6 of Annex 14 of ICAO (International Civil Aviation Organization latest edition) and are given for information only

1. Red obstruction light for night marking for towers with red and white stripes

For towers below 45 meters high:

  • 1 or 2 red fixed low intensity at the top

For towers between 45m and 105m high:

  • 1 red flashing medium intensity type B at the top
  • 2 or 3 red fixed low intensity type B at mid level (not more than 52 meters from top or ground level) If the tower is higher than 105 meters, additional levels of red medium intensity and low intensity lights should be added alternatively

At the bottom photocell and control cabinet in option (built-in photocell inside the flash-head can also be used)

Position DescriptionModel
Red medium intensityOFC-RI-240
low intensity type A and B, L-810 obstruction light Low intensity type BNAVILITE-FAA-120-240V

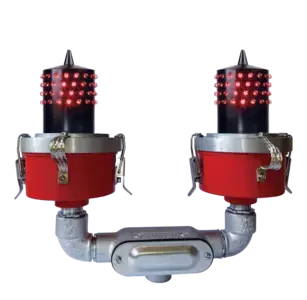

Low intensity double Low intensity type B doubleNAVILITE-FAA-120-240V-DUAL
Control at the bottom
Controler (optional)OFC-CTR-240
Twilight night Photocell Photocell for night only operationPHOTOCELL DC

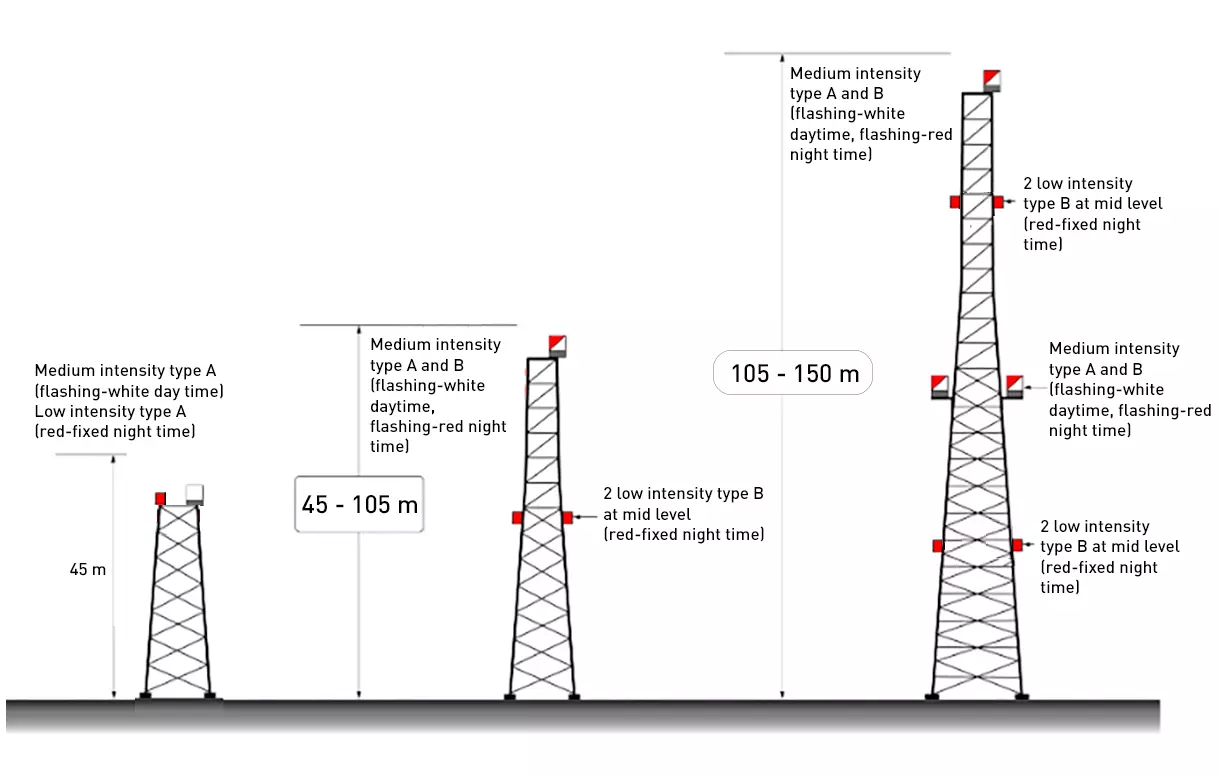

2. Unpainted tower higher 45m to 150 meters (Dual color system white during day time and red during night time)

Dual color medium systems white flashing lights during the day only and red lights during the night only are the most popular and recommended especially in urban area Same arrangement than above with dual color medium intensity type A & B + additional red fixed low intensity type B at intermediate levels in between medium intensity and operating at night only

Pos DescriptionModel
Dual color medium intensity Dual color medium intensity 360°OFI360-RW-240
Dual color medium intensity or/and 3 dual color medium intensity 120° kitOFI120-RW-48/240
low intensity type A and B, L-810 obstruction light Low intensity type BNAVILITE-FAA-120-240V
Low intensity double Low intensity type B doubleNAVILITE-FAA-120-240V-DUAL
Twilight night Photocell Photocell for day/twilight/night change of intensity & colorPHOTOCELL DC

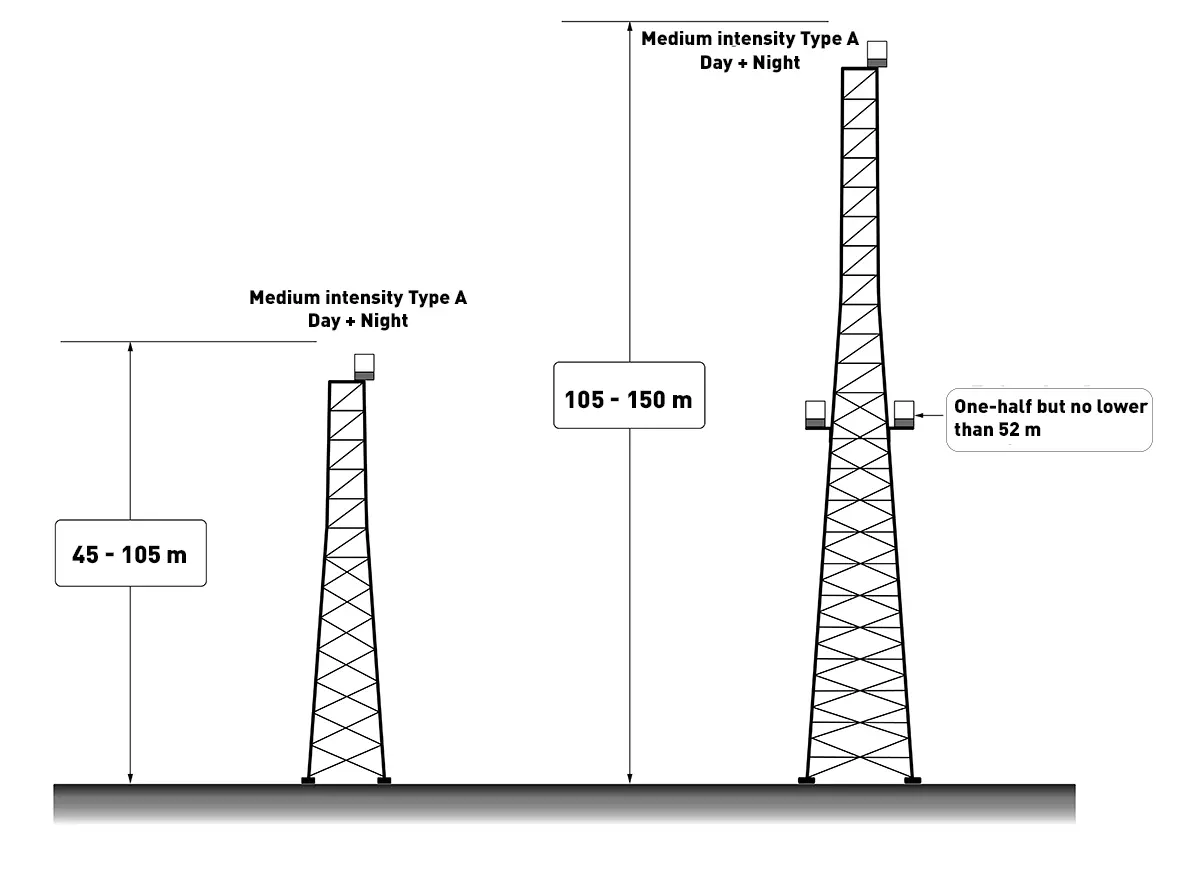

3. Unpainted tower higher 45m to 150 meters (White during day time and night time)

White flashing lights at night are not recommended in urban area, dual color system (white flashing during day time and red at night) should be used instead

  • for towers 45m up to 105m high, 1 or 2 white flashing medium intensity type A at the top
  • for towers 105m to 150m high, 2 to 4 white flashing medium intensity type A at intermediate level
  • for towers above 150 meters high in case of presence of red and white painted strips, additional levels of medium intensity type A every 105 meters max (high intensity in other case)

Pos DescriptionModel
Dual color medium intensity White medium intensity type AOFI360-WW-240

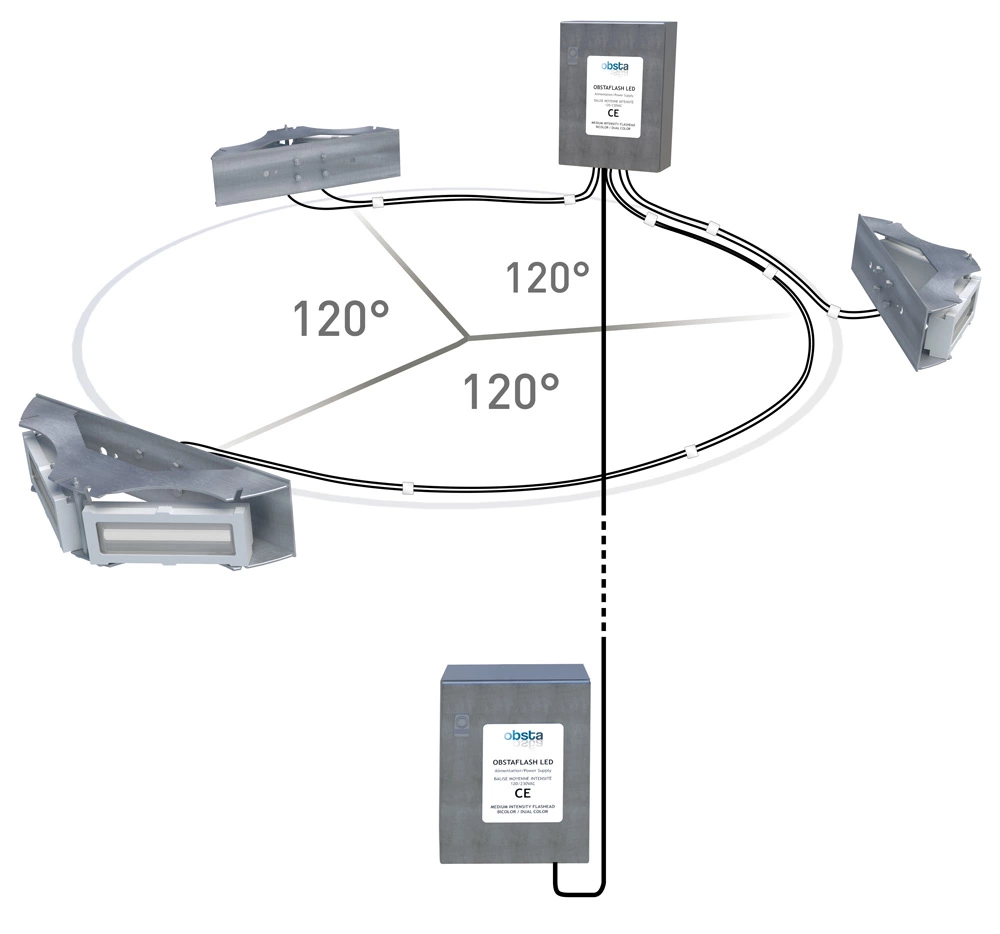

Dual color medium intensity 3 white medium intensity 120° kitOFI120-WW-48/240
Twilight night Photocell Photocell for day/night change of intensityPHOTOCELL DC

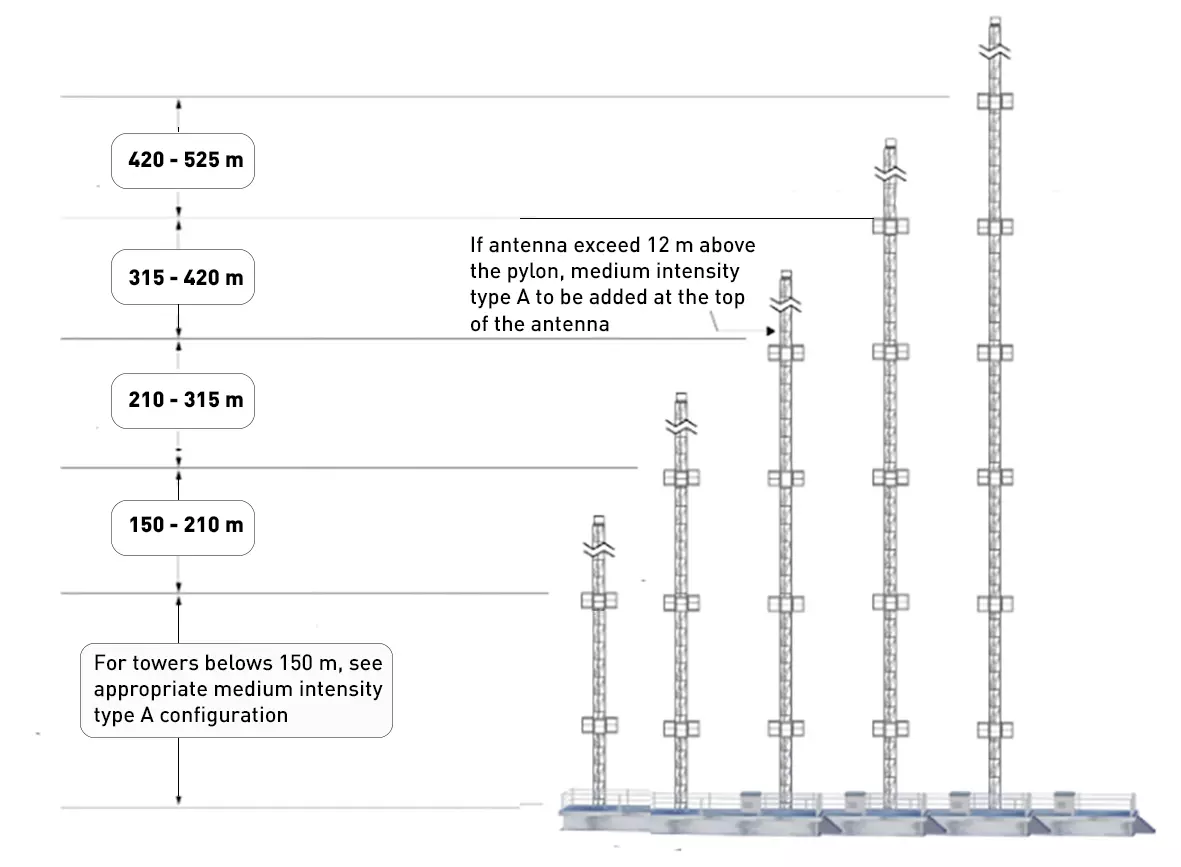

4. Unpainted tower higher than 150 meters (white configuration day/twilight/night)

For unpainted broadcast towers that are higher than 200 meters high, there should be every 105 meters 3 high intensity type A lights installed around the tower. Those high intensity type A are normally installed on platform (if there are!) every 105m maximum. In case the top level is above 12 meters of the last platform of high intensity, an additional medium intensity type A should be installed on the top or the antenna. These obstruction lights work permanently with 3 levels of intensity varying according to the day, the twilight and the night For pylons with an antenna of more than 12m on the last platform, a medium intensity type A light must be added at the top

DescriptionModel
Dual color medium intensity Medium intensity type AOFI360-RW-240
HIGH INTENSITY TYPE A High intensity type AOFH-120-RW-240B
Control at the bottom
ControllerOFH-CTR-CAN
Twilight night Photocell Photocell for day/twilight/night change of intensityPHOTOCELL DC

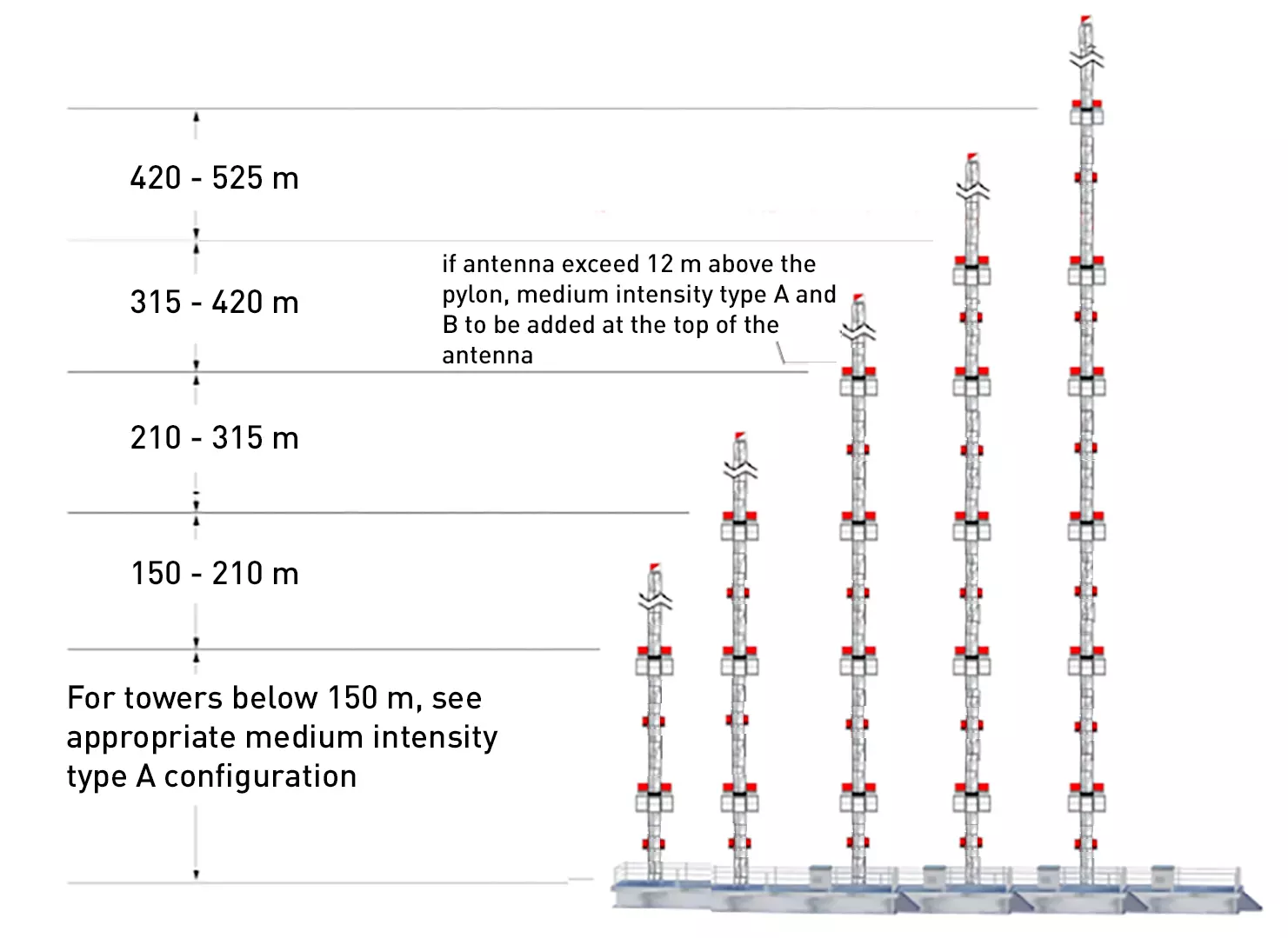

5. Unpainted tower higher than 150 meters (Dual color white during day/twilight time /night during night time)

DescriptionModel
Dual color medium intensity Medium intensity type A & BOFI360-RW-240
HIGH INTENSITY TYPE A High intensity type A (day/twilight) & red medium intensity type B at nightOFH-120-RW-240B
low intensity type A and B, L-810 obstruction light Low intensity type BNAVILITE-FAA-120-240V
Control at the bottom
ControllerOFH-CTR-CAN
Twilight night Photocell Photocell for day/twilight/night change of intensity & colorPHOTOCELL DC
