Medium intensity
OFI360-RW-240-U
Dual color medium intensity FAA L-865/L-864 ETL certified
OFI360-RW-240-U
Part Number
113725UI
Flashhead
6 led projectors with 2 white led circuits in redundancy and 1 red with infrared circuit
Aluminium and glass enveloppe
Simple installation with no losing parts when opening the flash-head
Led drivers in stainless enclosure inside the flash-head with 2 stage surge protections
Power supply
'Weather tight' stainless steel 316L power cabinet enclosure
Test button with 3 positions: remote (photocell), day and night mode
Alarm in compliance with FAA Engineering Brief 98
Multi-layer of surge protections
External photocell
Master/slave configuration in case of multiple lights synchronisation
Optional side lights L-810(L)(F) NAVILITE-IR-FAA-120-240V P/N 113969IR for mid level
Datasheet
L-865_LED_OBSTA_-_rev_1-18-21.pdf
L-864_LED_OBSTA_-_rev_1-18-21.pdf
User Manual
Tender specifications
Contact Us
The obstaflash system dual color L-865/L-864 or white only L-865 provides a day and night marking solution for all kind of obstacle higher than 61 meters as per FAA. For obstacle below 213 meters the use of white or dual color flashing lights L-865/L-864 during day and twilight time eliminate the need to paint the obstacle with red and white stripes
Select another reference:
OFI360-RW-240
OFI360-RW-240-U
OFI360-WW-240-U
Electrical Properties
Mechanical Properties
Norms
Photometric Properties
IR intensity and wavelength
> 600mW/sr @ 800-900nm
Effective light output day time at 0° on site
20 000cd (white)
Effective light output twilight mode at 0° on site
20 000cd (white)
Effective light output night mode at 0° on site
2000cd (red) with IR
Color day/twilight time
white
Color night time
Red
Vertical beam spread
>3°
Horizontal beam spread
360°
Intensity @ -10% to the ground
3% of max
Flash per minute
40/30 as per FAA
Main voltage
110VAC to 240VAC +/-10% 50/60Hz
Average wattage
55W (day time), 8W (night mode)
IP degree
IP66 per projector
Wiring
Entry of cable by glands nickel plated brass and connection by terminals
Operating temperature
Tu
-40/+55°C

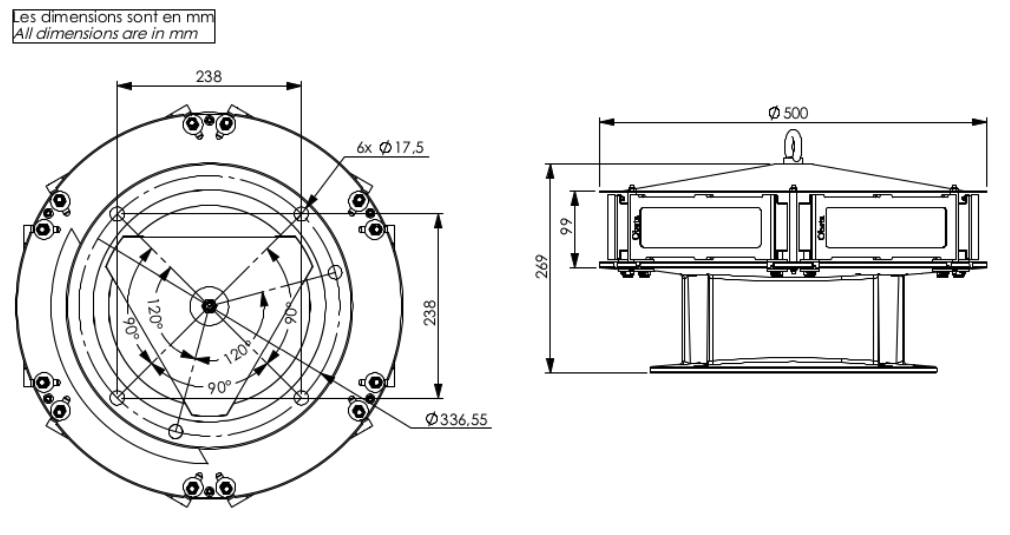

Size of the light
333mm (height) x 500mm (diameter)
Size of the power supply
400mm (height) x 300mm (width) x 200mm (dept)
Weight
18kg for flashhead, 10kg for power cabinet
Wire cross section
from 1 to 4 mm²
Attachment
6 mounting holes dia.16mm, dia.337mm circle (FAA standard)
Standards compliance
ICAO annex 14 chapter 6, FAA (AC 150/5345-43J), UK MOD, Transport Canada
Certification
FAA (AC 150/5345-43J), ETL listed, DGAC(Fr)
Associated Products
PHOTOCELL-DC-KIT

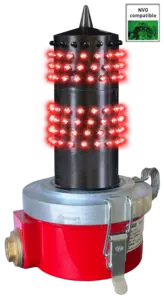

NAVILITE-IR-FAA-120-240V
×
Description:
Dual color medium intensity FAA L-865/L-864 ETL certified
Characteristics:
Flashhead - 6 led projectors with 2 white led circuits in redundancy and 1 red with infrared circuit - Aluminium and glass enveloppe - Simple installation with no losing parts when opening the flash-head - Led drivers in stainless enclosure inside the flash-head with 2 stage surge protections Power supply - 'Weather tight' stainless steel 316L power cabinet enclosure - Test button with 3 positions: remote (photocell), day and night mode - Alarm in compliance with FAA Engineering Brief 98 - Multi-layer of surge protections - External photocell - Master/slave configuration in case of multiple lights synchronisation - Optional side lights L-810(L)(F) NAVILITE-IR-FAA-120-240V P/N 113969IR for mid level
Standards compliance:
ICAO annex 14 chapter 6, FAA (AC 150/5345-43J), UK MOD, Transport Canada
Certification:
FAA (AC 150/5345-43J), ETL listed, DGAC(Fr)
CITEL
Reference:
OFI360-RW-240-U
Part Number:
113725UI
Or equivalent
