Calibrated ambient sensor (photocell) for twilight-night intensity change in accordance with ICAO and FAA for all OBSTA lights or for the change of color and light-intensity

PHOTOCELL-DC-KIT

Part Number 100757-KIT

plug-in modular construction with plated contact surfaces
possibility to rotate the censor on its base
automatic control of the red or dual obstruction lighting according to ambient light in compliance with FAA and ICAO twilight/night triggering level (2 output signals available for night and twilight)
timer to prevent the functioning of the cell at inopportune times (lightning)
this photocell is provided with a bracket to fix it on a wall and 40cm of molded cable

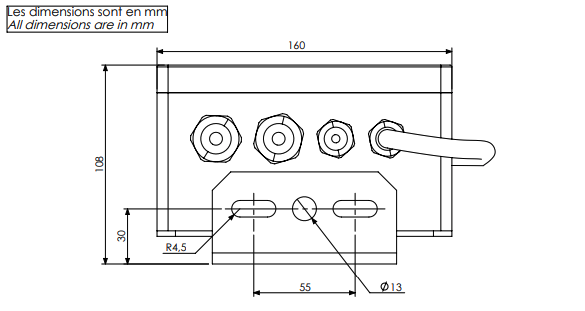

Junction box P/N113946 and bracket P/N113927 for cable extension included in the kit

The ambient light sensor should be mounted upright, away from artificial light (eg., floodlights), and in a location that will enable its sensor window to have an unobstructed view of the polar sky (eg., pointed north in the northern hemisphere).

Select another reference:

PHOTOCELL AC

PHOTOCELL AC KIT

PHOTOCELL DC

PHOTOCELL-DC-KIT

Electrical Properties Mechanical Properties Norms

Main voltage		12VDC to 48VDC -10%/+15%
Average wattage		1.5VA
Max. admissible current		2A contact closed for the night mode and 0,3A for the twilight mode

Cable diameter		Ø11mm
IP degree		IP65 in vertical position
Wiring		On stripped wires
Operating temperature	Tu	-35°C/+60°C
Weight		1,3kg
Attachment		vertical bracket

Standards compliance

ICAO annex 14 chapter 6, FAA (AC 150/5345-43J), UK MOD, Transport Canada
