OFH-CTR-CAN
Part Number: 113625LA

Controller for high intensity and white or dual color medium intensity obstruction light system This controller allows to have at the bottom of the obstacle a precise diagnostic of obstruction lights on the tower or in option remotely on a web server

OFH-CTR-CAN
  • allows the maintenance, the configuration, the installation and the administration up to 64 medium or high intensity OFH series obstruction lights
  • one single control cable (shielded cable 3x0.5mm2) connected to the lights
  • large touch screen
  • status and telemetric, humidity and temperature of each flashing lights allowing precise diagnostic from the ground
  • alarm threshold settings
  • stainless cabinet with cable inputs by gland nickel plated brass
  • surge protection
  • connexion of an external photocell
  • remote/manual switch to bypass the photocell and force day/twilight/night mode
  • automatic notification by email and/or SNMP
  • MQTT with wireless GSM modem in option

Stainless control box to facilitate the implementation and monitoring of dual color medium and high intensity OBSTA lights

Select another reference:

Main voltage
230VAC +/-10%
IP degree
IP65 in vertical position
Size of the power supply

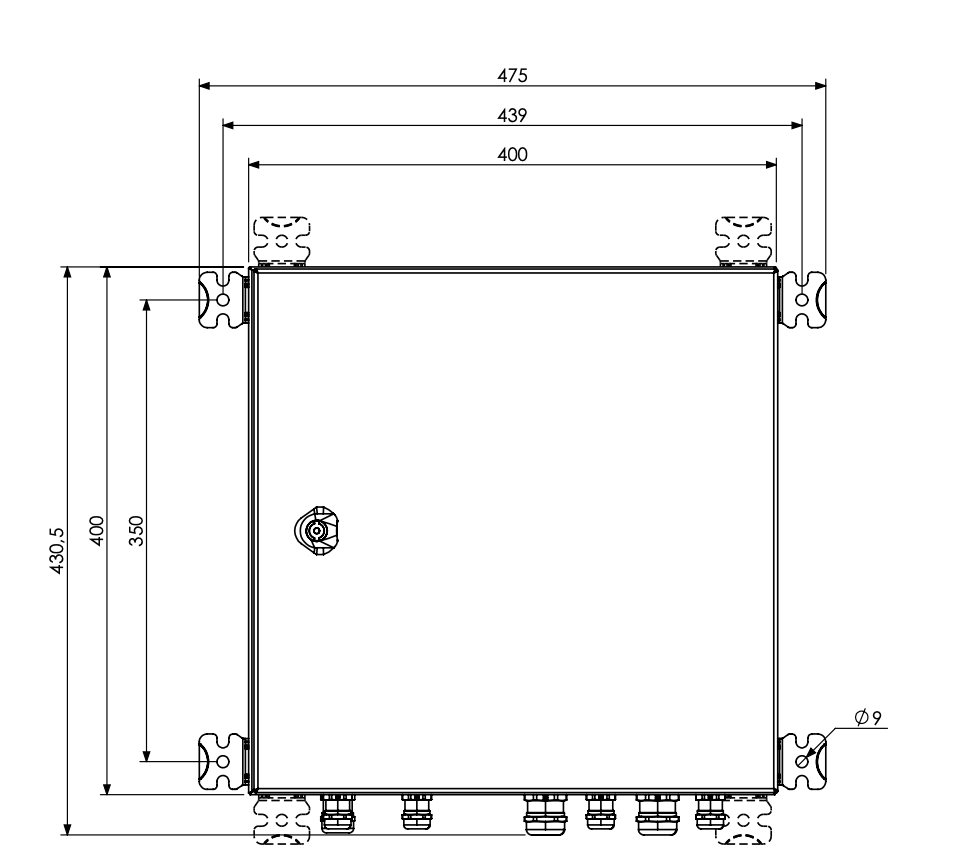

400mm (height) x 400mm (width) x 203mm (dept)
Weight
3,5kg
Cable entry diameter
from 8 to 15 mm
Wire cross section
from 1 to 4 mm²
Attachment
4 screws type M5
