Dual color medium intensity NVG compatible (infrared night vision goggles) Comply with ICAO medium intensity dual color type A and B

OFD-RW-048
Part Number 114792-048
OFD-RW-048

Dual color flashhead

  • Hard glass protection
  • Robust construction in aluminium
  • Precise optic, low power consumption
  • Hexagon shape with 6 modules each including decoupled white, red and infrared led circuits
  • NVG visible as per FAA standard
  • Simple installation with no losing parts
  • Normally open or normally close relay available in case of lamp or power supply default
  • Smart beacon with communication capabilities (controller, TCP Modbus)
  • type 2 surge protection with indicator
  • Photocensor and GPS built-inside
  • Low weight and compact design
  • Breather vent

The obstaflash dual color or white only provides a day and night marking solution for all kind of obstacle higher than 45 meters as per ICAO . For obstacle below 150 meters the use of white or dual color flashing light medium intensity type A during day time eliminates the need to paint the obstacle with red and white stripes

Select another reference:
OFD-RW-048
OFD-RW-240

IR intensity and wavelength

600mW/sr @ 800-900nm

Effective light output day time at 0° on site

20 000cd (white)

Effective light output twilight mode at 0° on site

20 000cd (white)

Effective light output night mode at 0° on site

2000cd (red) with IR

Color day/twilight time

white

Color night time

Red

Vertical beam spread

Horizontal beam spread

360°

Flash per minute

Type A: 20 / 30 / 40 / 60 FPM Type B: 20 / 30 / 40 / 60 FPM Type C : Continuous

Main voltage

48VDC (-10%; +15%)

Average wattage

30W (Day Mode) 5W (Night Mode Red+IR)

IP degree

IP66

Wiring

Entry of cable by glands nickel plated brass and connection by spring terminals

Operating temperature
Tu

-40/+55°C

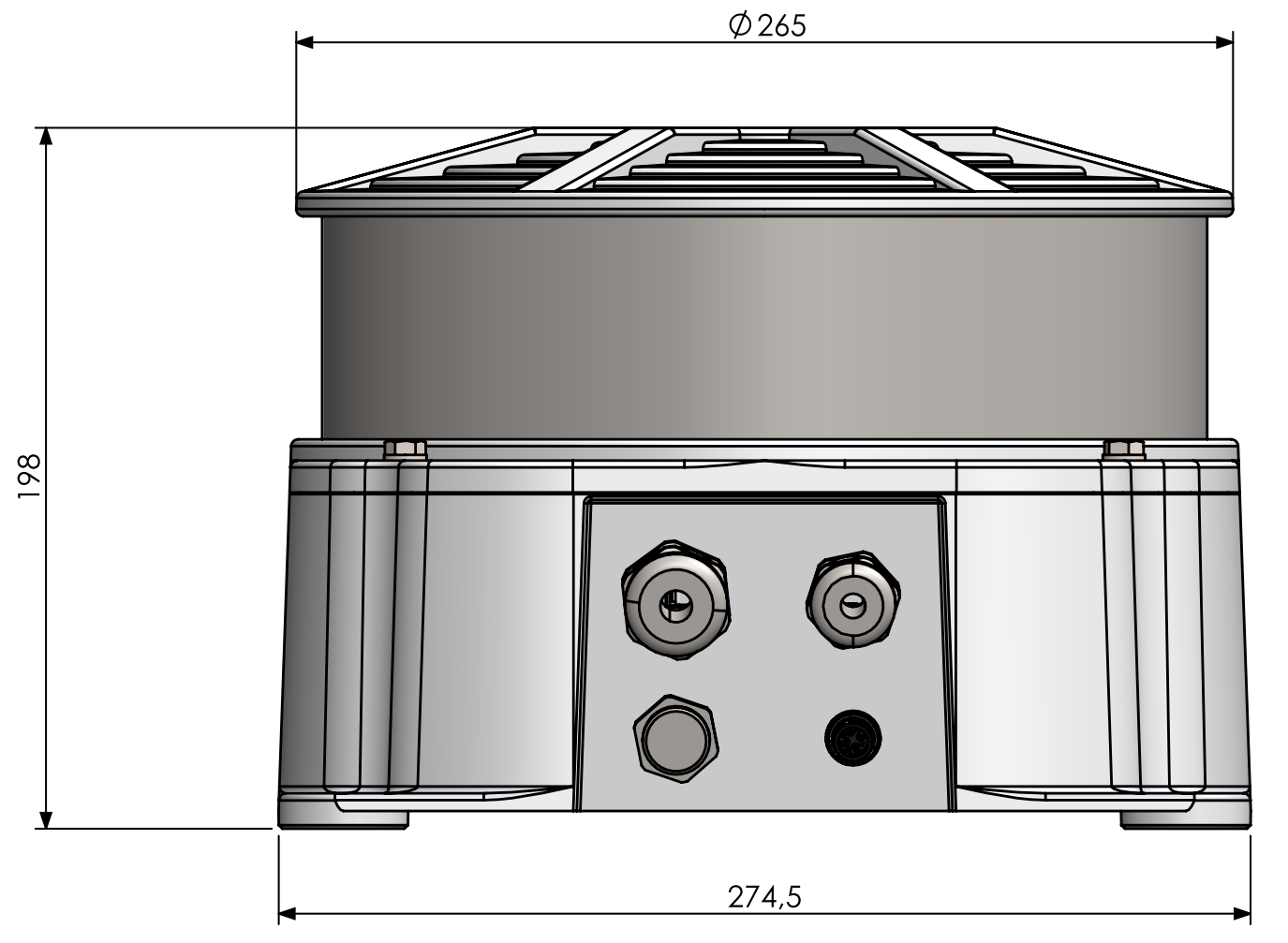

Size of the light

270 x 270 x 200 mm

Weight

10 kg

Cable entry diameter

1x M25 - 9 to 16 mm 1x M20 - 7 to 13 mm

Wire cross section

Power: 0.2 - 6mm² (24 - 8 AWG) Signal : 0.2 - 2.5 mm² (24 - 14 AWG)

Attachment

4x ⌀14mm on ⌀238mm (FAA standard)

Standards compliance

ICAO annex 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017), infrared as per intensity defined by FAA EB-98-NVG
