Reliability in
Part Number 113145

Monitoring and control box

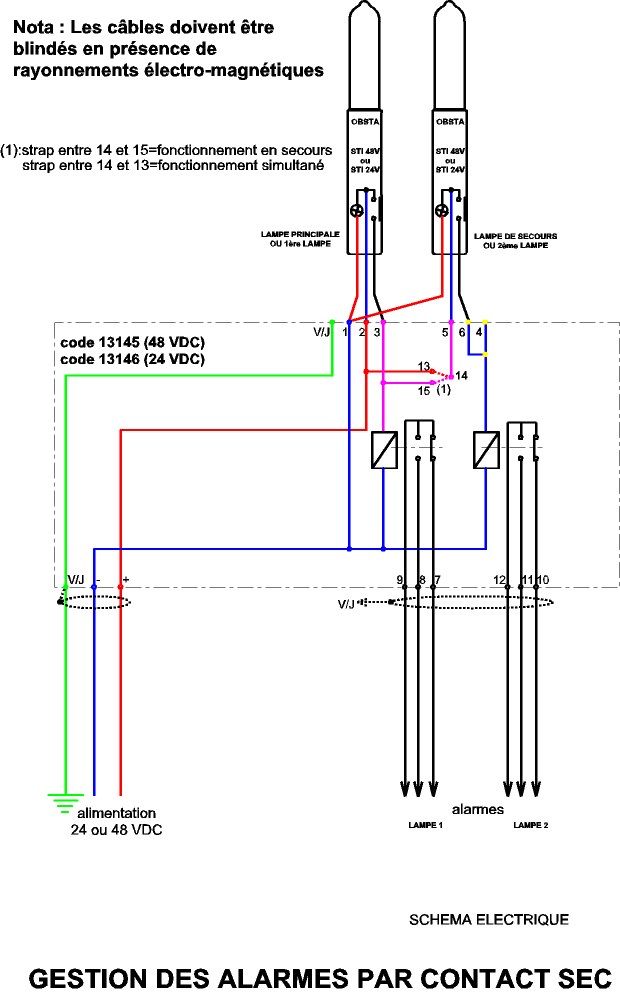

Alarm box for 2 OBSTA STI • painted and molded aluminum boxes • cable inputs by gland nickel plated brass • connection of two lights in 'simultaneous' operation or 'main and back-up' • connection of the 2 default information

The range of monitoring and junction boxes we propose is defined to facilitate the implementation and monitoring of red fixed OBSTA lights in 120VAC 240VAC or 48VDC . These metal boxes are suitable for EMC environments and severe climatic conditions. • lower part consisting of terminals and fully wired relays • excellent waterproofing (climatic & electromagnetic) • simple fixing & easy connection

Select another reference:

Main voltage
48VDC (-10%; +15%)
IP degree
IP65 in vertical position
1.9 kg
1,9 kg
Cable entry diameter
from 8 to 15 mm
Wire cross section
from 1 to 4 mm²
4 screws type M5
