This OBSTAFLASH120 ou 180 dual color medium intensity type A and B (or C) is designed for day and night marking of obstacle such as chimneys, pylons and high rise buildings (3 or more lights are required per level depending on diameter of the obstacle)
Part Number: 113747L10
OFP-120-RW-10L
[OBSOLETE]

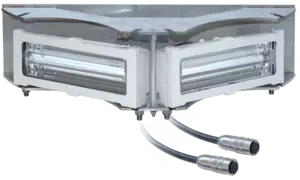

The flashhead includes
- 2 led projectors with molded cable and connector
- Stainless support for the 2 projectors
This flashhead must be powered through an obsta power supply. Minimum 3 flashheads are required around the obstacle.
Datasheet|
Wiring
|
Connectors L |
|
|
Operating temperature
|
Tu | -40/+55°C |
|
Weight
|
3,5kg |
|
|
Weight
|
5 kg |
|
|
Size of the light
|
120mm (height) x 480mm (width) |
|
Standards compliance
|
ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017) |
|
Effective light output day time at 0° on site
|
20 000cd (white) |
|
|
Effective light output twilight mode at 0° on site
|
20 000cd (white) |
|
|
Effective light output night mode at 0° on site
|
2000cd (red) with IR |
|
|
Color day/twilight time
|
white |
|
|
Color night time
|
Red or white |
|
|
Vertical beam spread
|
|
|
|
Horizontal beam spread
|
360° with minimum 3 flashheads fixed at 120° around the obstacle |
