Remote control and accessories
48V-BAT-18Ah-RW
48VDC UPS Battery Backup System powered through 110 to 240VAC (or 400VAC for some application). This UPS provides battery back-up in case of main power failure for our lights powered in 48Vdc The 4 batteries remain fully charged under normal AC power
48V-BAT-18Ah-RW
Part Number
113956-RW
Metal enclosure
110VAC to 240VAC power supply, 48Vdc output
Protection against transient overvoltage on AC and DC side
Protection against deep discharge batteries
Operating temperature -20°C/+45°C

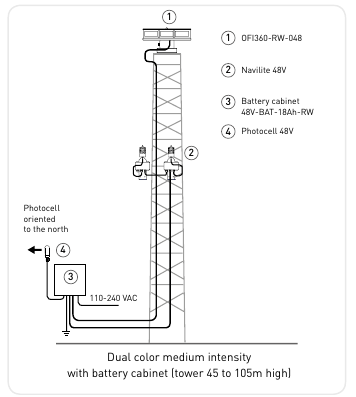

12 hours back-up for 1 dual color Obstaflash 48Vdc medium intensity (40 flashes per minute in white/day mode) with low intensity type B operating at night only
alarm "Normally Open" and "Normally Close" available for the top light
terminal connections for 48Vdc photocell for day/night switch (to be ordered separately)
Datasheet
Installation Sheet
Tender specifications
Contact Us
The obstacles which require permanent back-up must be fed by a battery cabinet
Select another reference:
48V-BAT-12Ah
48V-BAT-12Ah-R
48V-BAT-18Ah
48V-BAT-18Ah-230-400V
48V-BAT-18Ah-RW
48V-BAT-2,1Ah
48V-BAT-24Ah
48V-BAT-4,5Ah
48V-BAT-54Ah
48V-BAT-54Ah-RW
48V-BAT-7Ah
Electrical Properties
Mechanical Properties
Max Power
300W
Main voltage
110VAC to 240VAC +/-10% 50/60Hz
Operating temperature
Tu
-20/+45°C
Size of the power supply
600mm(height)x400mm(width)x230mm(depth)
Weight
48kg
Associated Products
OFI360-RW-048-U
PHOTOCELL 50LUX 48VDC
×
Description:
48VDC UPS Battery Backup System powered through 110 to 240VAC (or 400VAC for some application). This UPS provides battery back-up in case of main power failure for our lights powered in 48Vdc The 4 batteries remain fully charged under normal AC power
Characteristics:
- Metal enclosure - 110VAC to 240VAC power supply, 48Vdc output - Protection against transient overvoltage on AC and DC side - Protection against deep discharge batteries - Operating temperature -20°C/+45°C - 12 hours back-up for 1 dual color Obstaflash 48Vdc medium intensity (40 flashes per minute in white/day mode) with low intensity type B operating at night only - alarm "Normally Open" and "Normally Close" available for the top light - terminal connections for 48Vdc photocell for day/night switch (to be ordered separately)
CITEL
Reference:
48V-BAT-18Ah-RW
Part Number:
113956-RW
Or equivalent
