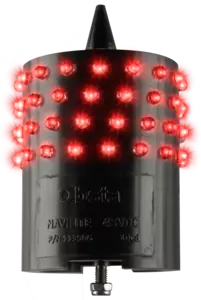

Red fixed low intensity type A and B
Part Number: 113905
NAVILITE-48V-CABLE
- Light part completely molded with 4 levels of leds
- Redundant circuits for LED’s : 16 circuits of 4 LEDs in redundancy
- No rise from the ground potential (due to lightning for example)
- Bird spike
The stainless bracket NAVILITE-HOLDER for mounting shall be order separately
The NAVILITE series are dedicated to night marking of any kind of air navigation obstacle such as wind mast, towers, cranes, building... The NAVILITE has also been designed to replace incandescent obstruction
lights or for new installation. The NAVILITE is one piece molded which integrates 4 levels of LED and
comes with wiring connectors or a molded cable.
Certificates
Datasheet|
Wattage
|
6 W |
|
|
Current drawn
|
125 mA |
|
|
Life time
|
~10years |
|
|
Main voltage
|
48VDC ± 10% |
|
IP degree
|
IP67 |
|
|
Wiring
|
On stripped wires (molded cable lenght 35cm) (2 power wires) |
|
|
Operating temperature
|
Tu | -40/+60°C |
|
Weight
|
370g |
|
|
Size of the light
|
112mm (height) x 63mm (over diameter) |
|
|
Attachment
|
1 screw M5 provided |
|
Standards compliance
|
ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017) |
|

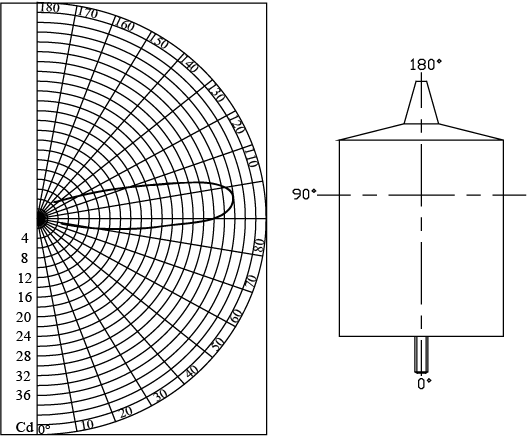

Luminous intensity
|
|
|
|
Color night time
|
Red fixed |
|
|
Vertical beam spread
|
|
|
|
Horizontal beam spread
|
360° |
