NAVILITE-230V
Part Number: 113909

Red fixed low intensity type A and B

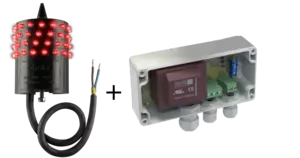

NAVILITE-230V
  • Completely molded and perfectly waterproof
  • Bird spike
  • No grounding issue, class II
  • Total 64 leds wired 4 by 4 in active redundancy
  • Robust 230VAC to 48VDC transformer

The stainless bracket NAVILITE-HOLDER for vertical or horizontal installation as per the drawing below should be ordered separately


The NAVILITE series are dedicated to night marking of any kind of air navigation obstacle such as wind mast, towers, cranes, building... The NAVILITE has also been designed to replace incandescent obstruction lights or for new installation. The NAVILITE is one piece molded which integrates 4 levels of LED and comes with wiring connectors or a molded cable.


Luminous intensity
> 32cd
Color night time
Red fixed
Vertical beam spread
>10°
Horizontal beam spread
360°
Wattage
6 W
Current drawn
70 mA
Life time
~10 years
Main voltage
230VAC +/-10%
IP degree
IP66 for the light and IP65 for the power supply
Wiring
Terminal connection (2 power wires)
Operating temperature
Tu -40/+55°C
Size of the light
112mm (height) x 63mm (over diameter)
Weight
1,8 kg
Cable entry quantity for power supply
2
Wire cross section
from 1 to 2,5 mm²
Attachment
1 screw M5 provided
Standards compliance
ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017)
