OBSTRUCTION LIGHTING FOR WIND TURBINES FAA APPLICATION

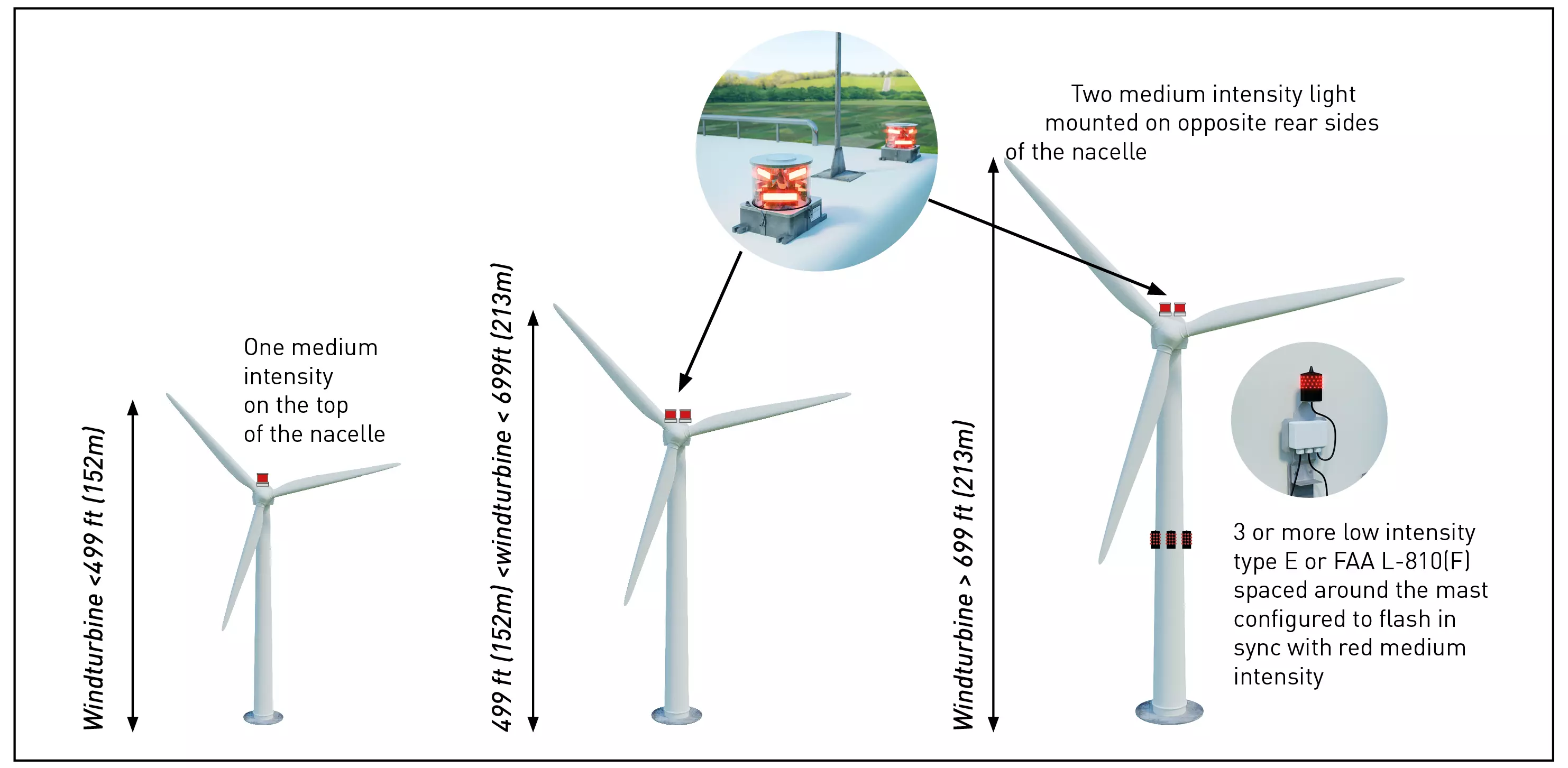

For FAA, 1 or 2 L-864 flashing red light at the top of the nacelle depending on the height of the windturbine (turbine height is determinated from the top of the rotor while at top dead center) :

  • 1 single FAA type L-864 if windturbine ≤ 499ft (152m)

  • 2 FAA type L-864 if 499ft (152m) ≤ windturbine ≤ 699ft (213m)

  • 3 or more FAA type L-810(F) mimic with L-864 spaced around mast at mid level for turbine > 699ft (213m).

Day/Twilight protection = Wind Turbine off -Whtite paint Night protection = 2,000 cd Red Light / 32 cd Red Side Lights

.DescriptionModel
FAA L-864OFC-RI-240
FAA L-810(F)NAVILITE-IR-FAA-120-240V
Contrôleur de feux moyenne intensité et haute intensité 4G IOT gateway for control and ON/OFFOBSTALINK
