OFC-RI-240-RG
Part Number 113790RI-240-RG
Red medium intensity FAA L-864 (AC 150/5345-43J) ETL certified
Flash-head with integrated power supply
- 6 Obsta optics with cover in hard glass and aluminium base
- Simple installation with no losing parts when opening the flash-head
- Power supply inside the flash-head
- NVG compatible (with IR)
- Alarm in compliance with FAA Engineering Brief 98
- Surge protection with indicator showing when it has failed included
- membrane vent
- Top sync for optional side lights L-810(L)(F) NAVILITE-IR-FAA-120-240V P/N113969IR
- GPS and internal photocensor in option
- Choice of the configurations (ICAO medium intensity type B (20, 30, 40, 50 ou 60 flashes per minute) or ICAO medium intensity type C or FAA L-864) through dip-switches inside the light, to be specified at time order
Datasheet
Select another reference:
|
IR intensity and wavelength
|
> 600mW/sr @ 800-900nm | |
|
Effective light output night mode at 0° on site
|
2000cd (red) with IR | |
|
Color night time
|
Red | |
|
Vertical beam spread
|
>3° | |
|
Horizontal beam spread
|
360° | |
|
Flash per minute
|
30 |
|
Main voltage
|
110VAC to 240VAC +/-10% 50/60Hz | |
|
Average wattage
|
10W (ICAO and FAA configuration @ 30 flashes per minute) |
|
IP degree
|
IP66 | |
|
Wiring
|
Entry of cable by glands nickel plated brass and connection by terminals | |
|
Operating temperature
|
Tu | -40/+55°C |
|
Weight
|
4 kg | |
|

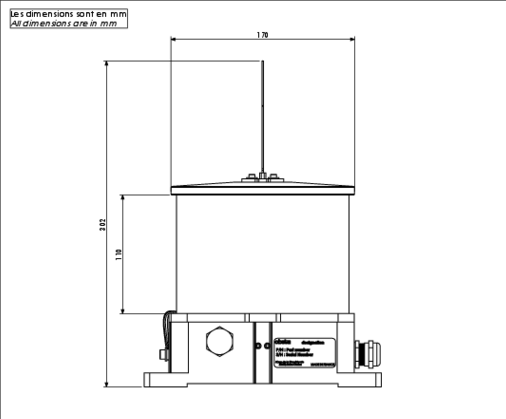

Size of the light
|
220mm x 190mm x 190mm | |
|
Weight
|
5kg | |
|
Cable entry diameter
|
from 7 to 13 mm | |
|
Wire cross section
|
up to 6mm² for power supply, up to 1,5mm² for signal | |
|
Attachment
|
4 mounting holes dia.9mm, 200mm x 140mm |
|
Standards compliance
|
ICAO annex 14 chapter 6, FAA (AC 150/5345-43J), UK MOD, Transport Canada | |
|
Certification
|
FAA (AC 150/5345-43J), ETL listed, DGAC(France) |
