Low intensity
NAVILITE-IR-NPT-48V
Led navilite low intensity type A and B with IR visible by Night vision goggles. The NAVILITE-IR-48V includes 2 "de-coupled" visible and infrared circuits compliant with most of Aviation Authorities in Europe. The infrared part can be fixed or blinking as per the directive AD I-006 F from OFAC in Switzerland
NAVILITE-IR-NPT-48V
Part Number
113965IRCH
Combi light low intensity as per ICAO + Night Vision Goggles compatible as per OFAC
De-coupled red (fixed mode) and IR (blinking mode)
Light part completely molded and waterproof
Redundant circuits for LED’s in both red and infrared
3/4" NPT threaded holes for mounting or with the "NAVILITE-L810-HOLDER"
No losing part during installation
Monitoring and power through a command box NAV-CMD-240 or NAV-CMD-048 with red fixed and infrared blinking according to Switzerland directive
Datasheet
2018.01.03.13.37-113905IR.pdf
Typical Wiring Diagrams
Tender specifications
Contact Us
Select another reference:
NAVILITE-IR-240VAC-KIT
NAVILITE-IR-48V-CABLE
NAVILITE-IR-NPT-48V
Electrical Properties

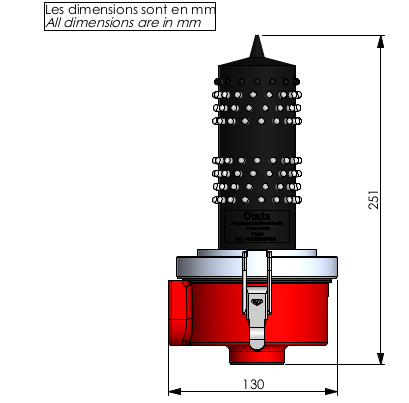

Mechanical Properties
Norms
Photometric Properties
IR intensity and wavelength
> 150mW/sr @ 850nm
Luminous intensity
> 35 Cd
Color night time
Red fixed
Vertical beam spread
>10°
Horizontal beam spread
360°
Wattage
12W
Life time
~10years
Main voltage
48VDC ± 10%
IP degree
IP65 in vertical position
Wiring
On 4 stripped wires (2 power wires for each red and infrared led circuit)
Operating temperature
Tu
-40/+55°C
Weight
1,5 kg
Cable entry quantity for power supply
2
Wire cross section
from 1 to 2,5 mm²
Attachment
2 NPT threaded holes
Standards compliance
ICAO annex 14 chapter 6, directive AD I-006 F from OFAC
Associated Products
NAVILITE-L810-HOLDER
NAV-CMD-SOL
48V-NAV-CMD-120/240
NAV-CMD-48-B
×
Description:
Led navilite low intensity type A and B with IR visible by Night vision goggles. The NAVILITE-IR-48V includes 2 "de-coupled" visible and infrared circuits compliant with most of Aviation Authorities in Europe. The infrared part can be fixed or blinking as per the directive AD I-006 F from OFAC in Switzerland
Characteristics:
- Combi light low intensity as per ICAO + Night Vision Goggles compatible as per OFAC - De-coupled red (fixed mode) and IR (blinking mode) - Light part completely molded and waterproof - Redundant circuits for LED’s in both red and infrared - 3/4" NPT threaded holes for mounting or with the "NAVILITE-L810-HOLDER" - No losing part during installation - Monitoring and power through a command box NAV-CMD-240 or NAV-CMD-048 with red fixed and infrared blinking according to Switzerland directive
Standards compliance:
ICAO annex 14 chapter 6, directive AD I-006 F from OFAC
CITEL
Reference:
NAVILITE-IR-NPT-48V
Part Number:
113965IRCH
Or equivalent
