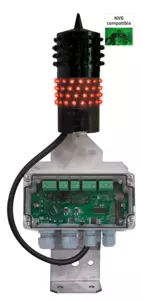

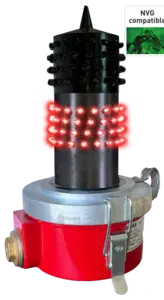

Led navilite low intensity type A and B with IR visible by Night vision goggles. The NAVILITE-IR-48V includes 2 "de-coupled" visible and infrared circuits compliant with most of Aviation Authorities in Europe. The infrared part can be fixed or blinking as per the directive AD I-006 F from OFAC in Switzerland

NAVILITE-IR-48V-CABLE

Part Number 113905IR

Completely molded and perfectly waterproof
Bird spike
No grounding issue, class II
2 independant decoupled red and infrared circuits:
64 red leds wired in 16 independent circuits of 4 leds each + 64 infrared leds wired in 16 independent circuits NVG compliant as per OFAC AD-006F directive
monitoring and power through a command box NAV-CMD-240 or NAV-CMD-048 (to be ordered separately) with red fixed and blinking infrared according to Switzerland directive

This light must be order with the "NAVILITE-HOLDER" for vertical or horizontal support to be order separately The light can also be fixed on a ground cable or OPGW cable with the "NAVILITE-CABLE-CLAMP" to be ordered separately

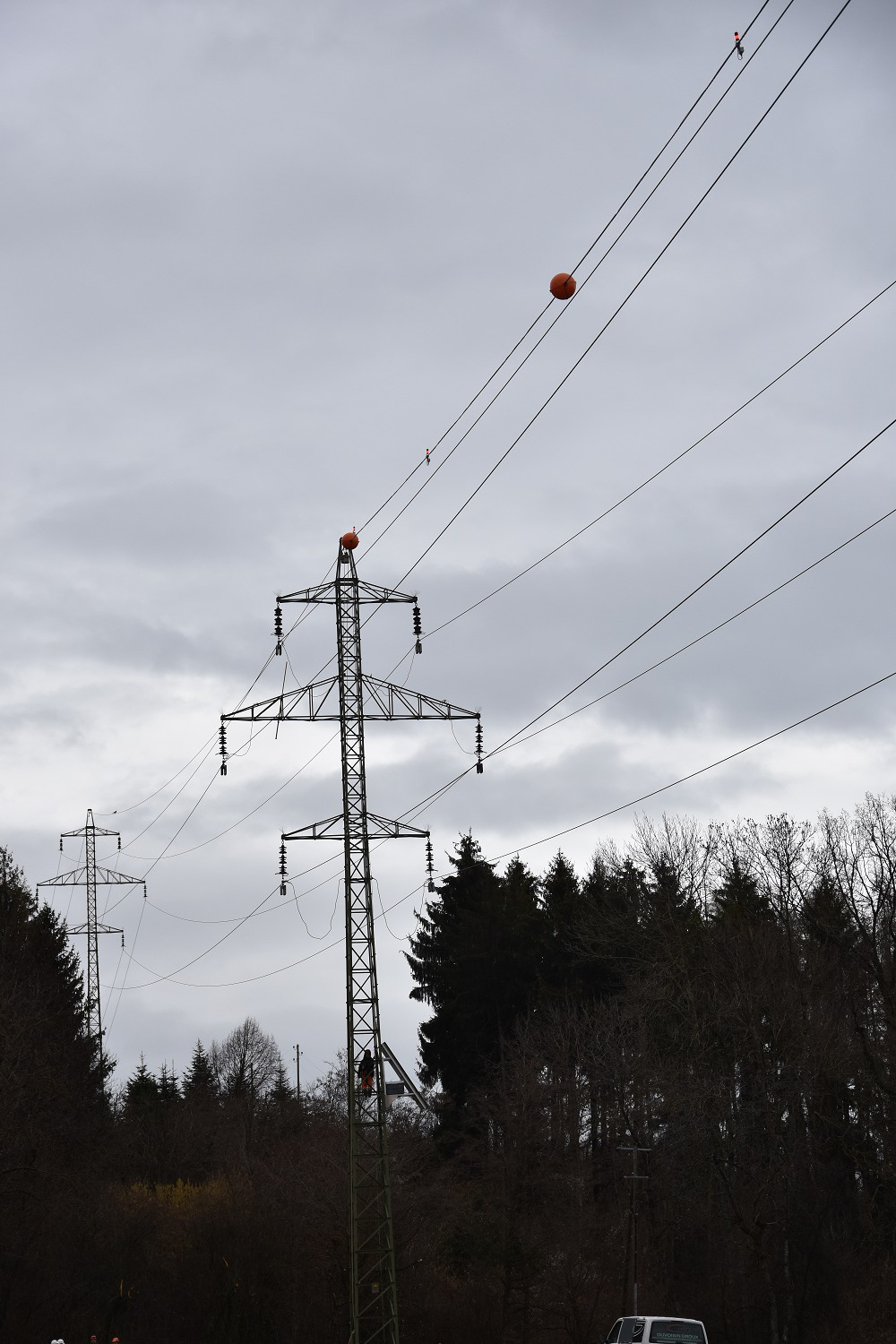

The NAVILITE with infrared is dedicated to night marking especially ground or optical cable above high voltage cables. This NAVILITE-IR is compatible with NVG by using infrared leds based on Switzerland FOCA directive AD-006F for transmission lines with a power higher than 150mW/sr. The NAVILITE-IR is one piece molded which integrates 2 independent circuits of 4 levels of 16 visible LED and 4 levels of 16 infrared leds

Select another reference:

NAVILITE-IR-240VAC-KIT

NAVILITE-IR-48V-CABLE

NAVILITE-IR-NPT-48V

Electrical Properties Mechanical Properties Norms Photometric Properties

IR intensity and wavelength		> 150mW/sr @ 850nm
Luminous intensity		> 32cd
Color night time		Red fixed
Vertical beam spread		10° visible and 15° in infrared
Horizontal beam spread		360°

Wattage		12 W (both red and IR fixed), or 6W (red fixed and IR blinking)
Current drawn		300 mA
Life time		~10years
Main voltage		48VDC ± 10%

IP degree		IP66
Wiring		On 4 stripped wires (molded cable lenght 35cm, external diameter 8,2mm) (2 power wires 1mm2 for each red and infrared led circuit)
Operating temperature	Tu	-40/+55°C
Weight		0.61 kg
Size of the light		Ø x h :63 x 230 (mm)
Attachment		1 screw M5 provided

Standards compliance

ICAO annex 14 chapter 6, directive AD I-006 F from OFAC

Associated Products

Description: Led navilite low intensity type A and B with IR visible by Night vision goggles. The NAVILITE-IR-48V includes 2 "de-coupled" visible and infrared circuits compliant with most of Aviation Authorities in Europe. The infrared part can be fixed or blinking as per the directive AD I-006 F from OFAC in Switzerland
Characteristics: - Completely molded and perfectly waterproof - Bird spike - No grounding issue, class II - 2 independant decoupled red and infrared circuits: - 64 red leds wired in 16 independent circuits of 4 leds each + 64 infrared leds wired in 16 independent circuits NVG compliant as per OFAC AD-006F directive - monitoring and power through a command box NAV-CMD-240 or NAV-CMD-048 (to be ordered separately) with red fixed and blinking infrared according to Switzerland directive This light must be order with the "NAVILITE-HOLDER" for vertical or horizontal support to be order separately The light can also be fixed on a ground cable or OPGW cable with the "NAVILITE-CABLE-CLAMP" to be ordered separately
Standards compliance: ICAO annex 14 chapter 6, directive AD I-006 F from OFAC

CITEL
Reference: NAVILITE-IR-48V-CABLE
Part Number: 113905IR
Or equivalent
