Helipad
GRASILIGHT
Heliport flood light
GRASILIGHT
Part Number
113975-P-240
Housing in aluminium painted with stainless protective cap
Hard glass
Nominal intensity : ~15 000Cd
Datasheet
Tender specifications
Contact Us
Select another reference:
GRASILIGHT
HELITE-G-24
HELITE-G-24-KIT
HELITE-G-I-240
WIND CONE
Electrical Properties
Mechanical Properties
Photometric Properties
Luminous intensity
≥10,000LM
Wattage
60 W
Main voltage
90 ~ 305VAC 127 ~ 431VDC
IP degree
IP66
Operating temperature
Tu
-40/+55°C
Color
white (5000K)
Weight
4 kg

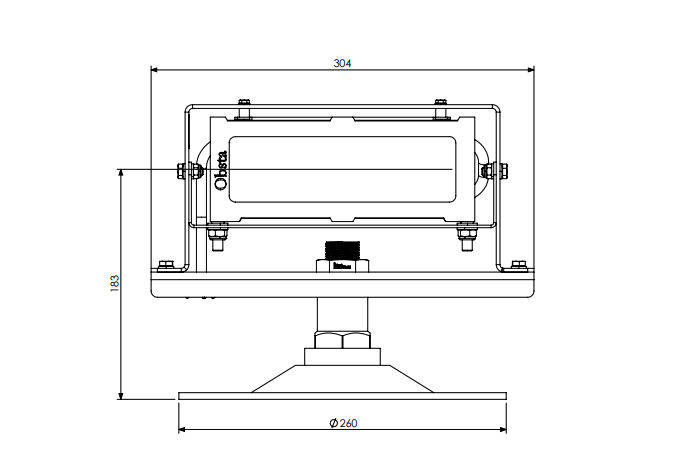

Size of the light
400mm x 260mm x 142mm
Weight
5,6 kg
×
Description:
Heliport flood light
Characteristics:
- Housing in aluminium painted with stainless protective cap - Hard glass - Nominal intensity : ~15 000Cd
CITEL
Reference:
GRASILIGHT
Part Number:
113975-P-240
Or equivalent
