110VAC to 240VAC stainless power cabinet with 6 plugs for 6 dual color projectors P/N113761

OFP-CAB-6P-L-RW-240
Part Number 113733L
OFP-CAB-6P-L-RW-240
  • 'Weather tight' stainless steel 316L power cabinet enclosure
  • Luminous indicator for each pair of led circuit
  • Test button for day and night
  • Alarm dry contact "normally open" and "normally close" both available
  • Master/slave configuration for synchronisation or through wireless GPS
  • Surge protection included 30KA in 8/20us wave
  • Possibility to connect side lights for night only operation


Select another reference:

Main voltage
110VAC to 240VAC +/-10% 50/60Hz
IP degree
IP65 in vertical position
Operating temperature
Tu -20/+45°C
Weight
10 kg
Size of the power supply

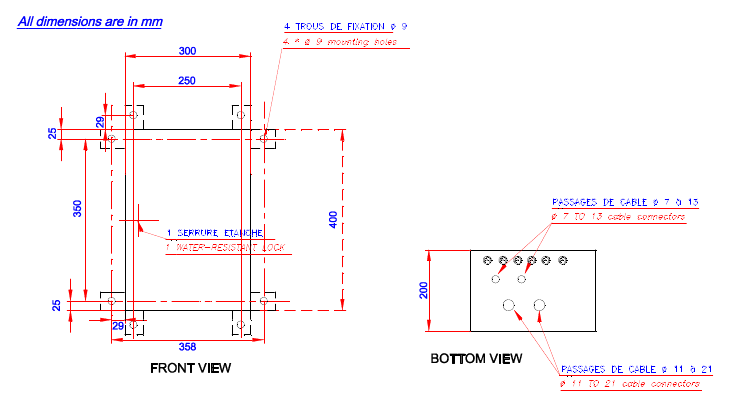

400mm (height) x 300mm (width) x 200mm (dept)
Wire cross section
from 1 to 4 mm²
