Reliability in
Obstruction
lighting
OFC-RI-SOL
Part Number 113790RI-SOL

Medium intensity type B

OFC-RI-SOL

Flash-head with integrated power supply

  • 6 Obsta optics with cover in hard glass and aluminium base
  • Simple installation with no losing parts when opening the flash-head
  • 2 leds circuits main and back-up (ICAO medium intensity type B or C configuration) or simultaneously with IR
  • Power supply inside the flash-head
  • membrane vent
  • GPS (-G) and/or photocensor (-R) in option



IR intensity and wavelength
> 600mW/sr @ 800-900nm
Effective light output night mode at 0° on site
2000cd (red)
Color night time
Red
Vertical beam spread
>3°
Horizontal beam spread
360°
Flash per minute
20, 30, 40 or 60 flashes per minute (medium intensity type B) or steady (medium intensity type C)
Main voltage
10-36Vdc
Average wattage
Below 3,5W @ 20 flashes per minute (minimum ICAO setting)
IP degree
IP66
Wiring
Entry of cable by glands nickel plated brass and connection by terminals
Operating temperature
Tu -40/+55°C

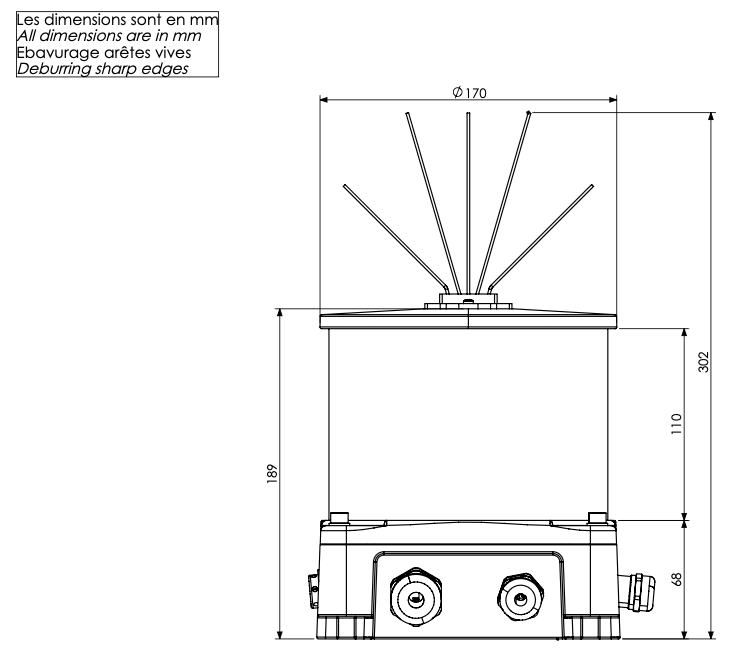

Size of the light
220mm x 190mm x 190mm
Weight
5kg
Cable entry diameter
from 7 to 13 mm
Wire cross section
up to 6mm² for power supply, up to 1,5mm² for signal
Attachment
4 mounting holes dia.9mm, 200mm x 140mm
Standards compliance
ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017)
