TECHNICAL NOTE: Dual-color medium intensity light (day and/or night) backed up by an energy cabinet with 12 hours of autonomy with OBSTA Cloud remote control.
This pack includes:
-
On the nacelle: 1 or 2 medium intensity Type A and B beacons with decoupled infrared LED circuits in compliance with the latest FAA standards. These beacons feature their own GPS to ensure automatic flash synchronisation and day/night change between lights. These beacons offer approximately one hundred adjustable intensity and current configurations based on ICAO or other regulations in Europe that could be updated through a USB or remotely "over-the-air" through an OBSTALINK with CAN-BUS capabilities.
-
In the nacelle: A 4G supervision module OBSTALINK connected to the 2 beacons, accessible via the OBSTA Cloud.
-
A 48Vdc energy cabinet: Containing batteries to ensure 12 hours of autonomy in the event of a 230VAC power supply failure.

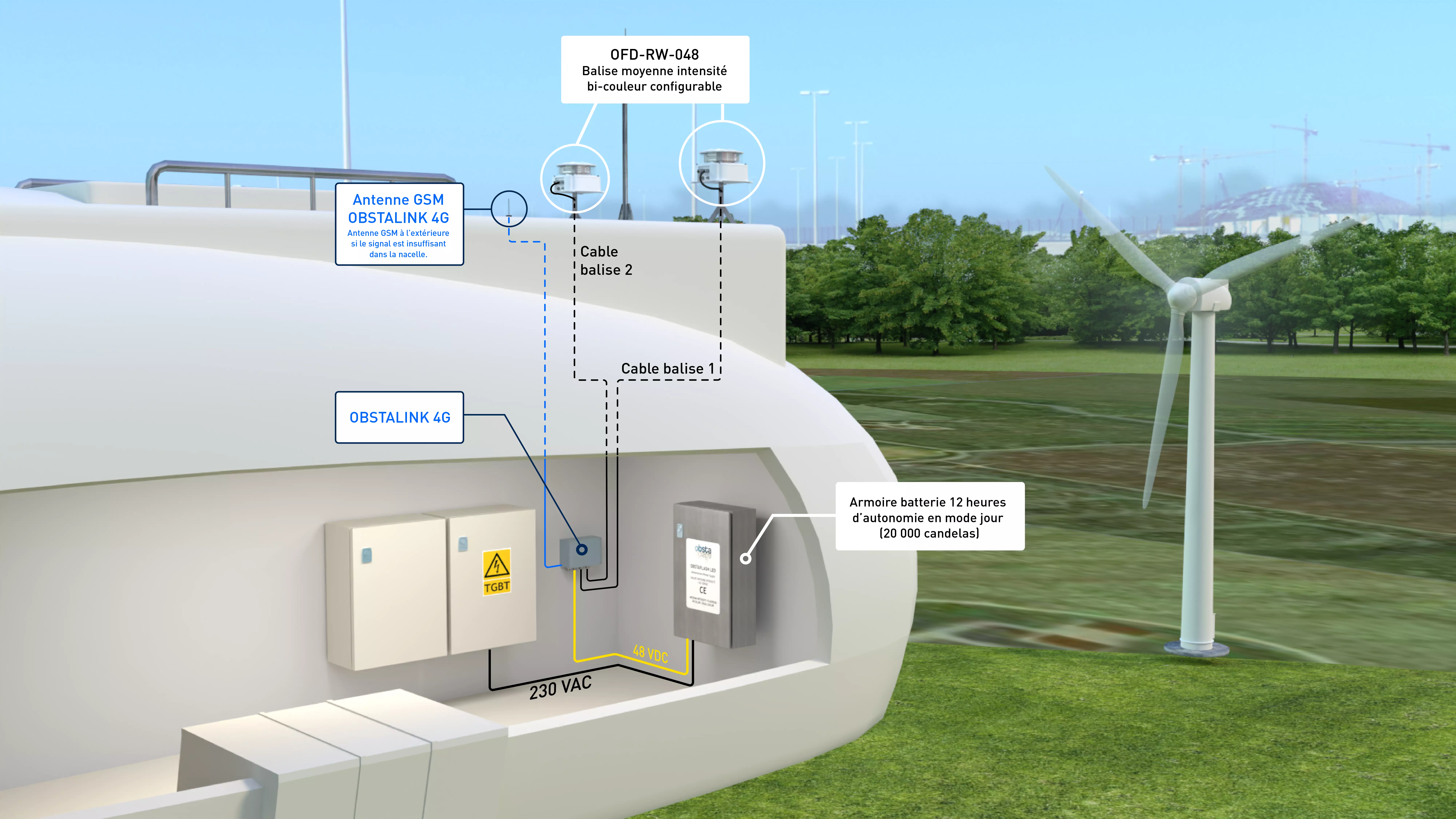

Description of the complete pack
| Position | Description | Model | |
|---|---|---|---|
| 1 |
| 1 or 2 medium intensity day and/or night lights 48Vdc | OFD-RW-048 |
| Dans la nacelle | |||
| 2 |
| Obstalink with CAN-BUS | OBSTALINK |
| 3 |
| 48Vdc energy cabinet (UPS) with 12 hours of autonomy, 230Vac input | 48V-BAT-18AH |
