Obstruction lighting system for high voltage lines, red fixed low intensity with IR

HVLite31

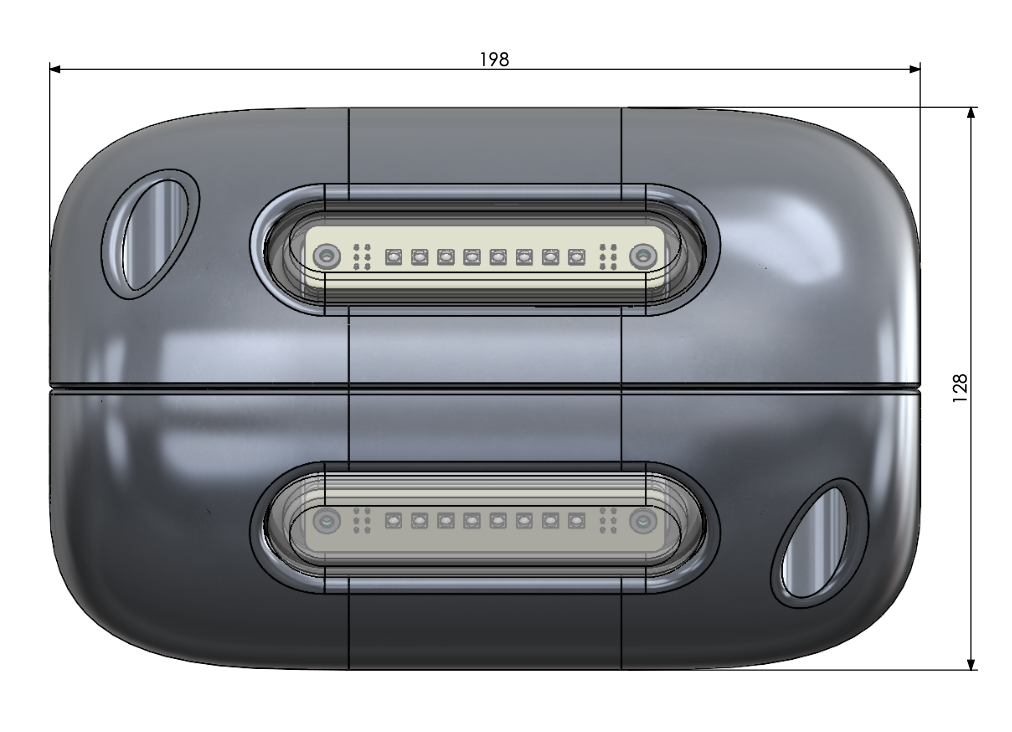

Part Number 114600-E
HVLite31

The BALISOR® LED system comprises :

  • Full body casing in 2 only halves of anodized and cast aluminum. Corrosion-proof for use in marine and damp tropical climate conditions
  • Simplest but most effective form factor with axial symmetry centered on the conductor. No rotation or mounting questions.
  • No other shapes or appurtenance that could generate corona effect, imbalance or vibrations on lines
  • Aluminium clamp as internal part of the design
  • Very low weight and minimized wind pressure
  • 6 captive screws only for tightening around the conductor in less than 1 minute.
  • Optics in hard glass. No risk of UV fading or sand erosion.
  • Inductive power supply operating in active redundancy. 4 circuits
  • All internal electronics molded in high temperature withstand silicon resin. Waterproof by concept.
  • Protection against electromagnetic fields
  • Smooth surface for self-cleaning and anti-bird shape

The power supply by inductive effect ensures a light intensity compliant with ICAO red fixed low intensity with infrared when the value of the electric current crossing the line is by default above 20A, whatever is the voltage of the power line


High-voltage lines are major hazards for low-flying aircraft. Placing beacons on pylons is not sufficient to ensure safety due to the very long spans of cable (extract of Aerodrom Design Manual chapter 14.7 annex 4). This BALISOR® system based on induction is a beacon for high voltage lines. Its conductors take the power required directly from the line.

Select another reference:
HVLite15
HVLite19
HVLite23
HVLite27
HVLite31
HVLite34

IR intensity and wavelength

20mW/sr @ 850nm

Luminous intensity

10 Cd (15A minimum)

Maximum AC voltage

up to 800KV, 50/60 Hz, 1500A

Power source

Self-powered by induction

Cable diameter

Ø30,6-33,5mm

IP degree

IP66

Operating temperature
Tu

-40/+55°C

Maximum cable temperature

200°C

Weight

5,2kg

Attachment

Aluminium clamps matching with the diameter of the cable

Standards compliance

ICAO Aerodrome Design Manual Part 4 chapter 14
