Led navilite low intensity type A and B with IR visible by Night vision goggles. The NAVILITE-IR-48V includes 2 "de-coupled" visible and infrared circuits compliant with most of Aviation Authorities in Europe. The infrared part can be fixed or blinking as per the directive AD I-006 F from OFAC in Switzerland
Part Number: 114960-66

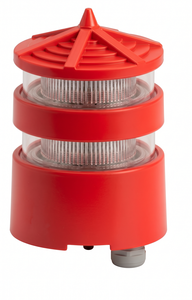

NAV-RI-DC-CABLE-SMT
- Light part in aluminium painted and in hard glass
- Optimized power consumption
- No rise from the ground potential (due to lightning for example)
- Bird spike
- NVG compatible (with IR)
The stainless bracket NAVILITE-HOLDER for mounting shall be order separately
The NAVILITE series are dedicated to night marking of any kind of air navigation obstacle such as wind mast, towers, cranes, building... The NAVILITE has also been designed to replace incandescent obstruction
lights or for new installation. The NAVILITE is one piece molded which integrates 4 levels of LED and
comes with wiring connectors or a molded cable.
Datasheet|
Wattage
|
4W (red and infrared fixed mode) |
|
|
Life time
|
~10years |
|
|
Main voltage
|
10-60VDC |
|
IP degree
|
IP 66 |
|
|
Wiring
|
On stripped wires (molded cable lenght 1m) (2 power wires) |
|
|
Operating temperature
|
Tu | -40/+55°C |
|
Weight
|
300g |
|
|
Size of the light
|
99mm (height) x 75mm (over diameter) |
|
|
Attachment
|
1 screw M5 provided |
|
Standards compliance
|
ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017) |
|
IR intensity and wavelength
|
|
|
|
Luminous intensity
|
|
|
|
Color night time
|
Red fixed |
|
|
Vertical beam spread
|
|
|
|
Horizontal beam spread
|
360° |
