Monitoring and control box
Part Number: 113140

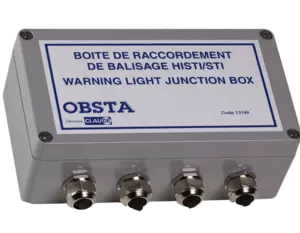

STI-JB-4
Single junction box for every type of light and every voltage with 4 cable inputs
- painted and molded aluminum boxes
- cable inputs by gland nickel plated brass
- connection of 1 to 3 lights in simultaneous operation
- or connection of two lights 'main and back-up' or working simultaneously with or without a photocell
- connection of the default information
The range of monitoring and junction boxes we propose is defined to facilitate the implementation and monitoring of red fixed OBSTA lights in 120VAC 240VAC or 48VDC .
These metal boxes are suitable for EMC environments and severe climatic conditions.
• lower part consisting of terminals and fully wired relays
• excellent waterproofing (climatic & electromagnetic)
• simple fixing & easy connection
Datasheet|
IP degree
|
IP65 in vertical position |
|
|
Weight
|
1.84 kg |
|
|
Weight
|
1,8 kg |
|
|
Cable entry diameter
|
from 8 to 15 mm |
|
|
Wire cross section
|
from 1 to 4 mm² |
|
|
Attachment
|
4 screws type M5 |
