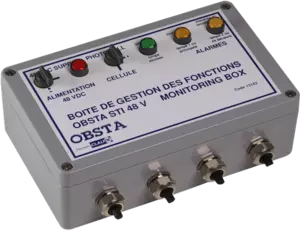

Monitoring and control box
Part Number: 113142-120
STI-CMD-120
[OBSOLETE]
Monitoring box
- painted and molded aluminum boxes
- cable inputs by gland nickel plated brass
- monitoring up to 6 lights in simultaneous operation (or 6 pairs of 2 lights main and back-up)
- connection of the photocell, the default information and the lights through additional junction box P/N113141
- 2 waterproof switches (on/off switch and remote/manual switch to bypass the photocell)
- led indicator for the presence of power supply voltage
- led indicator for the information lights switch on or switch off
- 2 led indicators for the status of the main lights and the back-up lights
The range of monitoring and junction boxes we propose is defined to facilitate the implementation and monitoring of red fixed OBSTA lights in 120VAC 240VAC or 48VDC .
These metal boxes are suitable for EMC environments and severe climatic conditions.
• lower part consisting of terminals and fully wired relays
• excellent waterproofing (climatic & electromagnetic)
• simple fixing & easy connection
Datasheet|
Main voltage
|
120VAC +/-10% |
|
IP degree
|
IP65 in vertical position |
|
|
Weight
|
2.8 kg |
|
|
Weight
|
2,8 kg |
|
|
Cable entry diameter
|
from 8 to 15 mm |
|
|
Wire cross section
|
from 1 to 4 mm² |
|
|
Attachment
|
4 screws type M5 |
