Monitoring and control box
Part Number: 113145

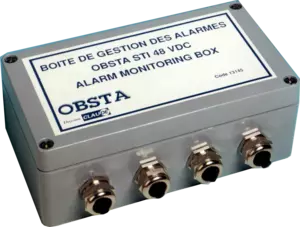

STI-AL-48
[OBSOLETE]
Alarm box for 2 OBSTA STI • painted and molded aluminum boxes • cable inputs by gland nickel plated brass • connection of two lights in 'simultaneous' operation or 'main and back-up' • connection of the 2 default information
The range of monitoring and junction boxes we propose is defined to facilitate the implementation and monitoring of red fixed OBSTA lights in 120VAC 240VAC or 48VDC .
These metal boxes are suitable for EMC environments and severe climatic conditions.
• lower part consisting of terminals and fully wired relays
• excellent waterproofing (climatic & electromagnetic)
• simple fixing & easy connection
Datasheet|
Main voltage
|
48VDC (-10%; +15%) |
|
IP degree
|
IP65 in vertical position |
|
|
Weight
|
1.9 kg |
|
|
Weight
|
1,9 kg |
|
|
Cable entry diameter
|
from 8 to 15 mm |
|
|
Wire cross section
|
from 1 to 4 mm² |
|
|
Attachment
|
4 screws type M5 |
