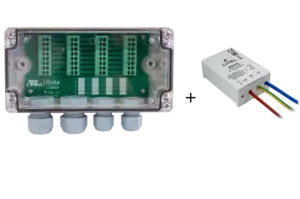

Junction box fully wired for 4 cables each with 8 wires max
Part Number: 113946-MSB10-48DC
NAV-JB-8-MSB10-48DC
- Polycarbonate enveloppe with 4 cable entries
- 4 x 8 terminal connections
- Provided with 48Vdc surge protection MSB10-48DC
Datasheet|
IP degree
|
IP65 in vertical position |
|
|
Dimensions
|
160 x 58 mm |
|
|
Weight
|
300g |
|
|
Weight
|
0.416 kg |
|
|
Cable entry diameter
|
6,5-12 mm & 4-10mm |
|
|
Wire cross section
|
from 1 to 2,5 mm² (long terminal) |
|
|
Attachment
|
4 screws type M4 |
|
|
Position of the 4 mounting holes
|
148 x 50 mm |
