This OBSTAFLASH120 ou 180 dual color medium intensity type A and B (or C) is designed for day and night marking of obstacle such as chimneys, pylons and high rise buildings (3 or more lights are required per level depending on diameter of the obstacle)

OFP-120-RW-JB

Part Number 113747JB

The flash-head OFP-120-RW-JB includes

2 led projectors made in glass and painted aluminium coming with 75cm of molded cable
1 junction box OFP-JB-2P-RW to connect the 2 projectors to the power supply through one single cable
Stainless support for the 2 projectors and the junction box

This flash-head must be powered directly from an external obsta power cabinet to be ordered separately

Select another reference:

OFP-120-R-10

OFP-120-R-JB

OFP-120-RW-10

OFP-120-RW-JB

OFP-180-R-JB

OFP-180-RW-JB

Mechanical Properties Norms Photometric Properties

Effective light output day time at 0° on site		20 000cd (white)
Effective light output twilight mode at 0° on site		20 000cd (white)
Effective light output night mode at 0° on site		2000cd (red) with IR
Color day/twilight time		white
Color night time		Red or white
Vertical beam spread		>3°
Horizontal beam spread		360° with minimum 3 flashheads fixed at 120° around the obstacle

Wiring		Entry of cable by glands nickel plated brass and connection by terminals
Operating temperature	Tu	-40/+55°C
Weight		6.25 kg

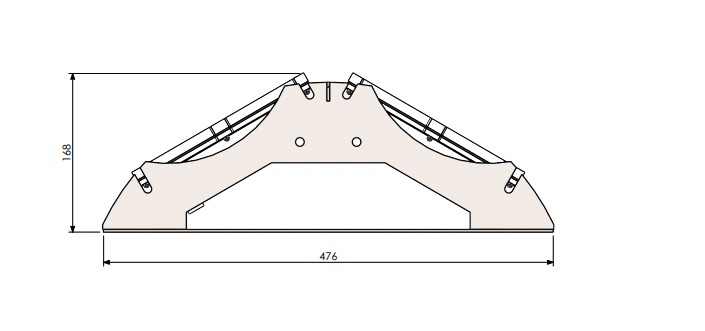

Size of the light		120mm (height) x 480mm (width)
Weight		3,5kg

Standards compliance

ICAO annexe 14 chapter 6 (8th edition 07/2018), EASA (4th edition 2017)
